Key Features

splash feature 02

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

copper feature 2

Incoloy 800 Element:

: Withstands temperatures up to 1000°C. Long lasting, even in case of hard water (except 10L models).

puf-Nemonic

Polyurethane Foam (PUF) Insulation: :

Reduces heat loss and keeps water hot for much longer.

magma feature 5

8 Bars Pressure:

Suitable for pressure pumps and multi - storey buildings.

hunt nm3

Triple Safety:

Multi-function Safety Valve, Capillary Thermostat & Disc cutout...

nexus feature 6

Sacrificial Magnesium Anode:

A special device to enhance the corrosion protection of the tank by means of “Cathodic action”.

rust-proof-lids

Rustproof ABS Lids:

With Aesthetic Design and Stylish bottom inspection cover.

Flexi mount

Slim design with 12 diameter.It can easily concealed inside a false ceiling or fixed, in the smallest space

slim-special-feature

Specification

Vertical

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 35°C :


Dimensions (in mm) :
A
B
C
D
E

010HS

2000

10

18min

355

305

145

201

-

015HS

2000

15

20min

475

305

192

201

-

025HS

2000

25

33min

645

305

365

201

-

Rated Pressure: 8 Bars(8kg/cm2 ; max, 80m water head)

* Specifications subject to change without prior notice

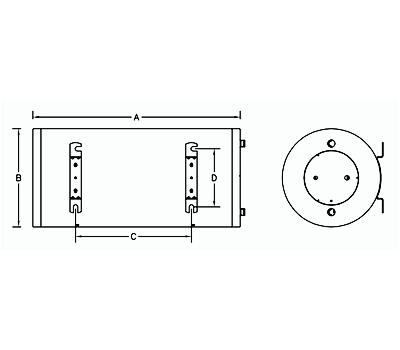

slim line drawing
