Key Features

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

splash feature 03

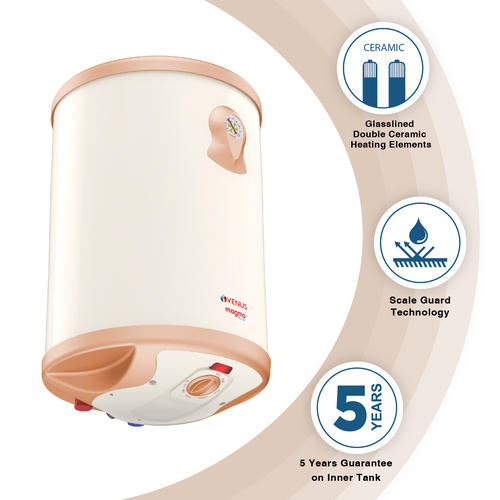

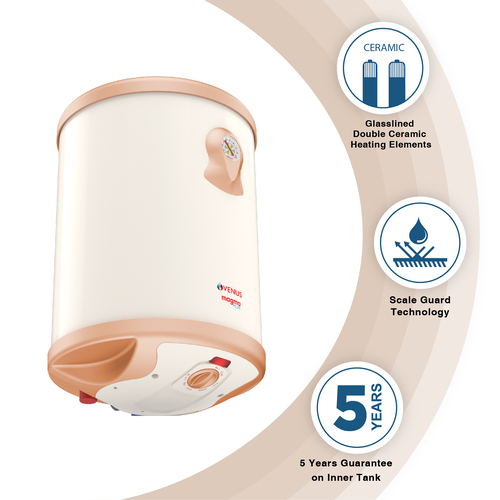

Glasslined Double Ceramic Heating Elements:

Shock-proof, hard water proof, long-lasting (except 6 litres).

tubler-element-MN

Tubular Element:

High quality copper heating element for long life and performance (for 6 litres only).

nexus feature 3

Incoloy 800 element:(Horizontal models)

Withstands temperatures up to 1000°C. Long lasting, even in case of hard water. Reduces scale formation. Prevents premature element failure.

puf-Nemonic

PUF Insulation:


3cm thick (PUF) insulation keeps the water hot for a much longer time and reduces energy consumption.

magma feature 5

8 Bars Pressure:


Suitable for pressure pumps and multi-storey buildings.

magma feature 6

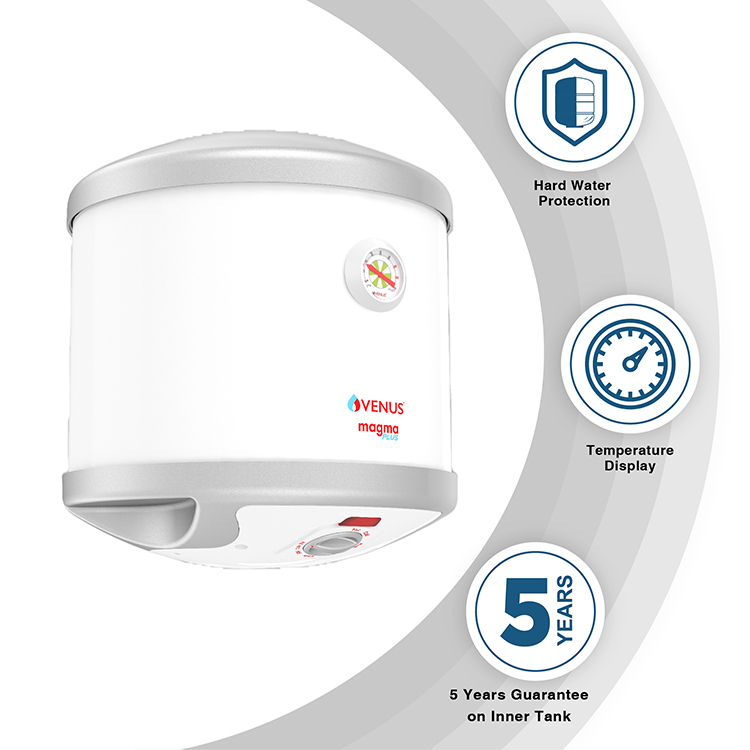

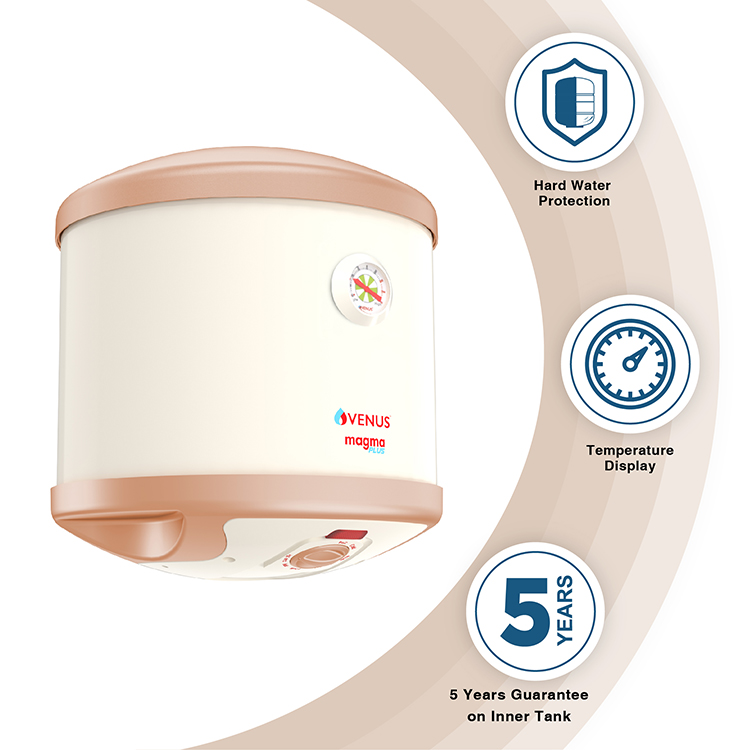

Temperature Display

The display indicates the real-time display of the current temperature.

lyra instant nm1

PP Outer Body:


Corrosion free. Shock proof. PP Outer Body Upto 25L models (Above 35L Metal body)

triple-safety-NM

Triple Safety:

Multi-function Safety Valve, Capillary Thermostat & Thermal cutout.
(Vertical Models)

magma feature 4

Flexi Mount:


Flexible mounting options (Horizontal Model) Wall/Floor mounting. Left/right side opening options available - ideal for modern apartments.

isi-nemonic

ISI:


Fit water heater company in India to be awarded the prestigious ISI certification. This guarantees safety and gives the assurance of high performance.

magma feature 1

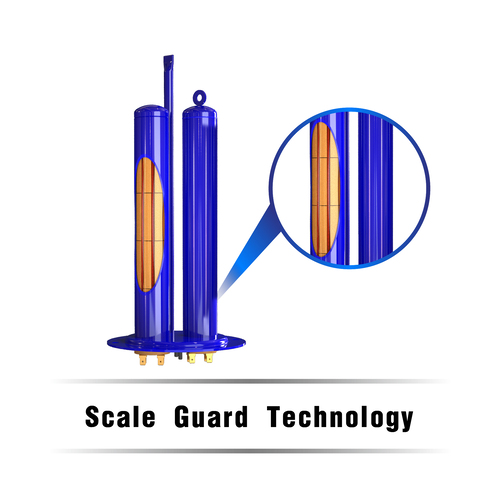

Scale Guard Technology:

In Ceramic heating element heat is transferred over a much larger surface area, which reduces the stress on heating element, lowers watts density/sq.cm and ensures less scale deposition on heating element.

Magma-innerbanner

Scale Guard Technology

In Ceramic heating element heat is transferred over a much larger surface area, which reduces the stress on heating element, lowers watts density/sq.cm and ensures less scale deposition on heating element.

Scaleguard

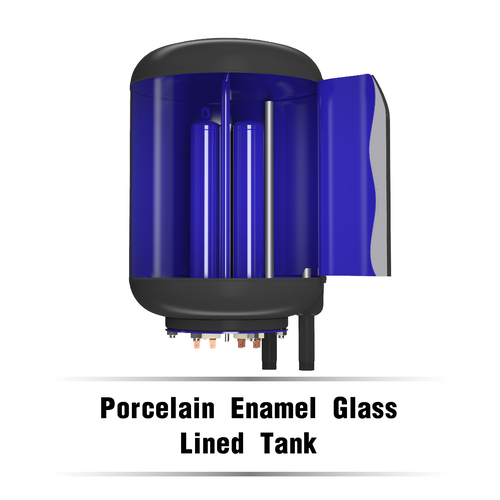

Porcelain Enamel Glass Lined Tank:

Porcelain Enameling

Porcelain enamel tanks are widely used internationally and are approved for use in water heaters by BIS, IEC,i DIN(German), UL(US) standards. In India, VENUS is the first manufacturer to start enameling with Dry Powder Enamel system which is superior to other types of coatings.

Specification

Vertical

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 35°C :

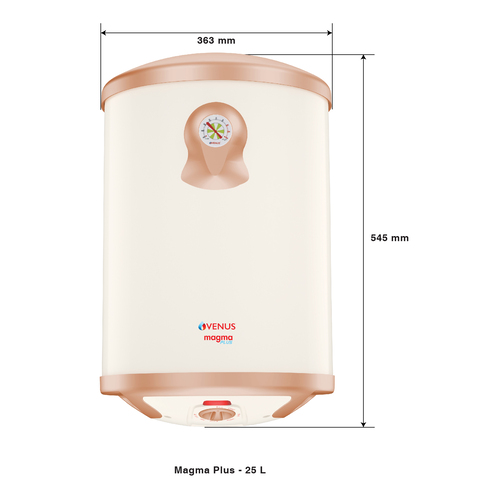

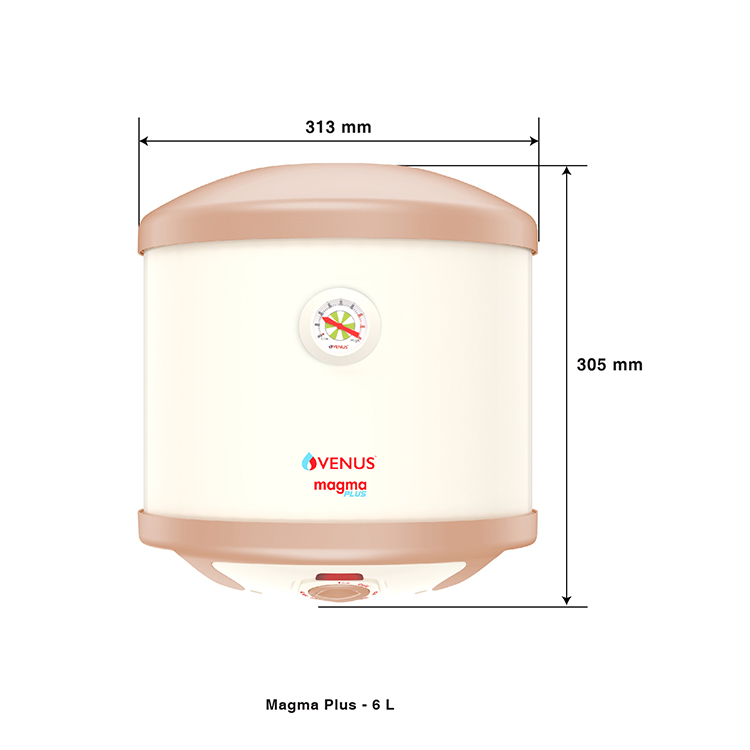

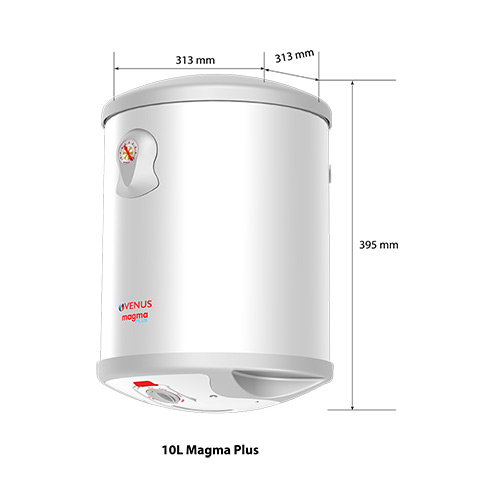

Dimensions (in mm) :
A
B
C
D

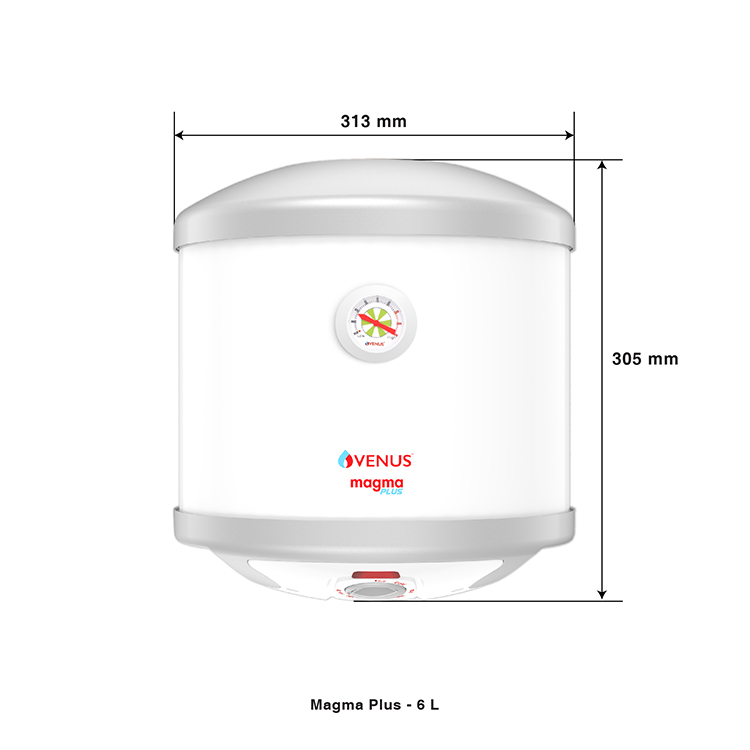

006GV

3000

06

6min

305

313

-

201

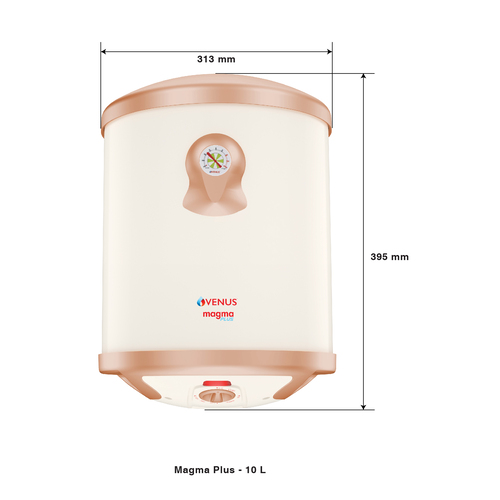

010GV

2000

10

13min

395

313

-

201

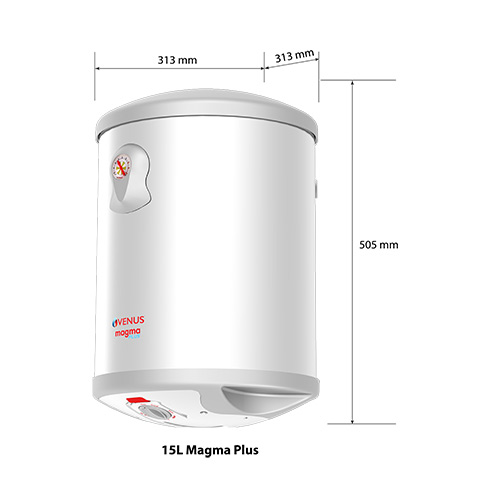

015GV

2000

15

20

505

313

-

201

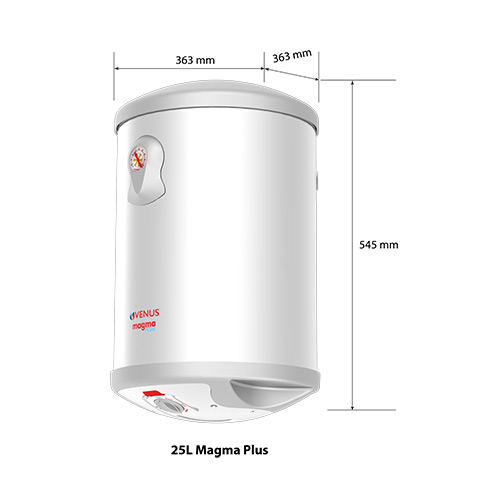

025GV

2000

25

33min

545

363

-

201

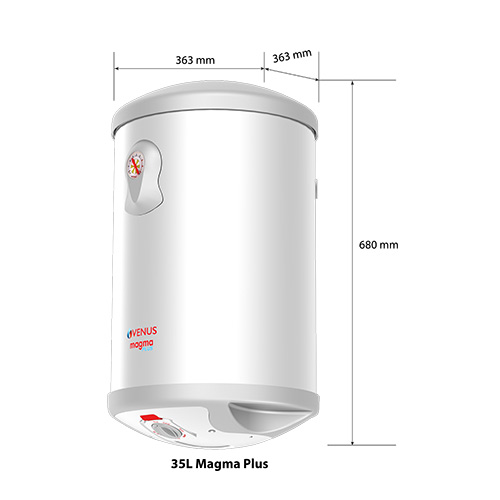

035GV

2000

35

45min

680

363

-

201

050GV

2000

50

64min

590

453

200

201

070GV

3000

70

60min

765

453

367

201

100GV

3000

100

85min

1005

453

609

201

* Specifications subject to change without prior notice
