Lyra instant inner

Key Features

Lyra Intant - 1 Litre

lyra instant nm5

Inner Tank:

Stainless Steel for corrosion free performance

lyra instant nm2

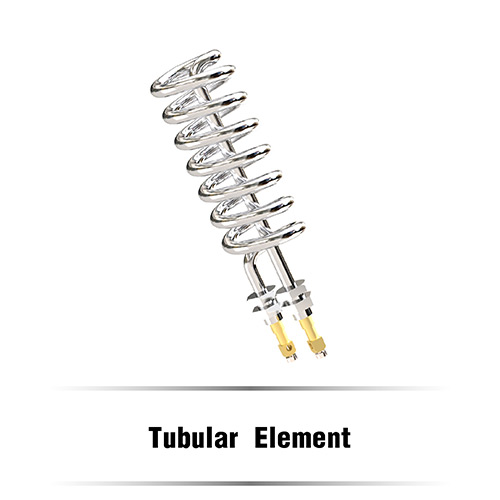

Tubular Element:

High quality copper heating element for long life and performance.s.

lyra instant nm1

ABS Plastic Outer Body :

Compact. Corrosion free. Shock proof..

Lyra Intant - 3 Litre

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

lyra instant nm2

Tubular Element:

High quality copper heating element for long life and performance.s.

nexus feature 5

Multi Function Valve :

Acts as pressure release valve, non-return valve, expansion valve, drain valve & vacuum release valve.(Only for 3 Litres).

8 bar

8 Bars Pressure:

Suitable for pressure pumps and multi - storey buildings.

lyra instant nm1

ABS Plastic Outer Body :

Compact. Corrosion free. Shock proof..

Porcelain Enamel Glass Lined Tank:

Porcelain enamel tanks are widely used internationally and are approved for use in water heaters by BIS, IEC,i DIN(German), UL(US) standards. In India, VENUS is the first manufacturer to start enameling with Dry Powder Enamel system which is superior to other types of coatings.

Porcelain Enameling

Specification

Veritical

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 3L / min :

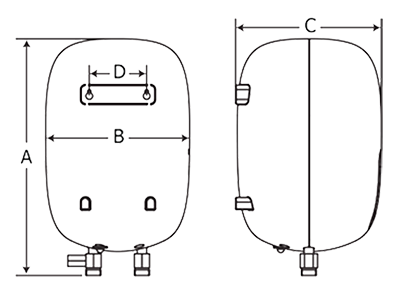

Dimensions (in mm) :
A
B
C
D

R30

3000

1

15°C

312

189

192

76

R45

4500

1

21°C

312

189

192

76

3R30

3000

3

15°C

349

220

223

71

3R45

4500

3

21°C

349

220

223

71

R30/R45: Rated Pressure: 6bar (6kg/cm2 : max, 60m water head)
3R30/3R45, Rated Pressure: 8bar (8kg/cm2 : max, 80m water head)
* Specifications subject to change without prior notice
