Key Features
Tankless Heat Exchanger Technology :
The heating element and water pipe are molded together for quick transfer of heat from element to the water without contact. This ensures quick heating, long life and safety.
Digital Temperature Display:
The set and actual temperature are prominently displayed.
Microprocessor Control:
System adjusts heating power output to maintain the set temperature even when the water flow rate is altered..
Over heat Protection:
Super safe as it prevents the heat exchanger from over heating (i.e. more than 90°C)
6 Bar Pressure:
High working pressure suitable for connection to pressure pumps.
Constant temperature output:
Quik is engineered to provide constant temperature output by controlling the power output.

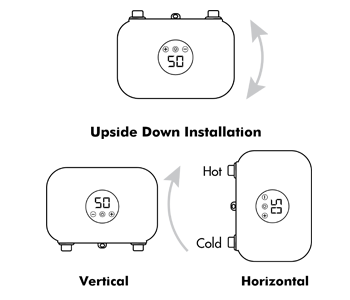

Upside Down Installation:
In tankless water heaters provide flexibility for space-saving configurations, allowing for unconventional mounting orientations.
Flexi Mount:
*Flexi Mount: Flexi option for Vertical / Horizontal Mounting.*upside down mounting installation available in QU55 models only
Specification
Model :
Wattage(W) :
Rated Voltage :
Wiring Size :
WRequired Rating of Circuit Breaker :
Rated pressure :
Safety class:
Temp.Setting range :
Rate of flow:
| Temperature Rise @ : |
| 5 L/min |
| 7 L/min |
| 10 L/min |
Dimensions (mm):
QU55
5500 W
220-240 V, 50/60 Hz AC
3 x 2.5 mm2
32 amps
0.02 ˜ 0.6Mpa
IP25
30°C - 50°C
1.5 - 10 L/min
16°C
11°C
8°C
A 170 x B 220 x C 55
* Specifications subject to change without prior notice
