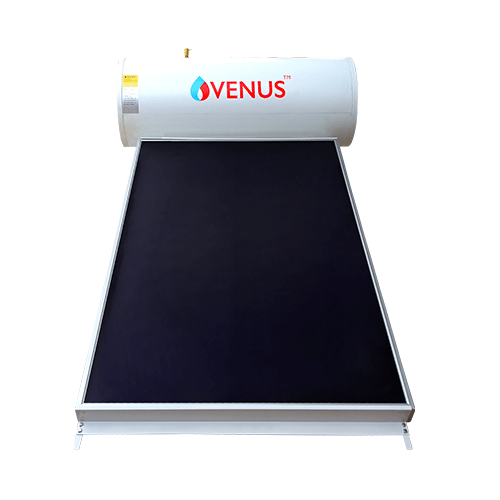

Jacketed Flat Plate

Venus Jacketed flat plate solar water heaters harness the power of the sun and use it to the maximum to give you hot water when you need it. They come with a Super Efficient Collector with 100% copper fins and a corrosion resistant Porcelain enamel tank that offers hard water protection.

Guarantee

5 Years on Product
7 Years Guarantee on Inner Tank

KEY FEATURES

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

solar-nemo-7

Powder coated Outer body :

Long life corrosion proof Pre coated outer cladding

solar-nemo-9

Flat plate collector

Flat plate collector with 100% copper fins coated in black for maximum absorption of solar radiation and effective heat transfer

solar-nemo-6

Aluminium alloy stand

Sturdy and rust resistant

solar-nemo-4

Backup electric heating element

For cold rainy days(Optional)

solar-nemo-5

PUF

50mm PUF insulation for minimum heat loss

Specification

Description

Modle Name

Inner Tank Material

Inner Tank Thickness

Jacket Thickness

Outer Tank Material

Outer Tank Thickness

Outer Tank Diameter

Frame

Frame Thickness

Cover Glass Material

Cover Glass Thickness

Tank Capacity

PUF Insulation

Working Pressure

HAJK200

HALO JACKET

Jacket enamel tank

1.2mm

1.2mm

Colored steel sheet

0.4 mm

460mm

Aluminium alloy

2mm

Textured tempered glass

4mm

200 L

50mm

7 bar

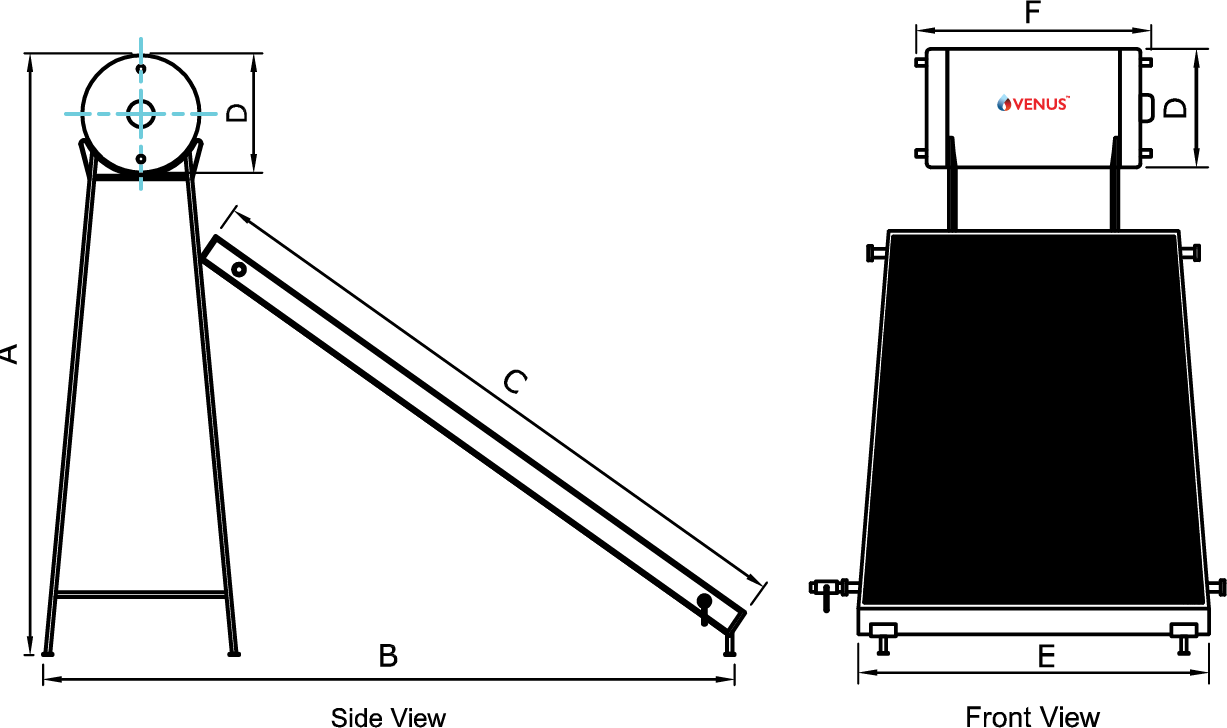

Model

200Ltrs

A

1800

B

2300

C

2000

D

600

E

1150

F

1100

heating technology
Indirect Heating Technology
1. Inlet
2. Outlet
3. Heating Element
4. Anode
5. Cold Water
6. Hot Water
solar-water-heater-jacket
