Key Features
Porcelain Enamel Glass Lined Tank:
Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion..
PUF insulation
5cm Thick PUF insulation for minimum heat loss.

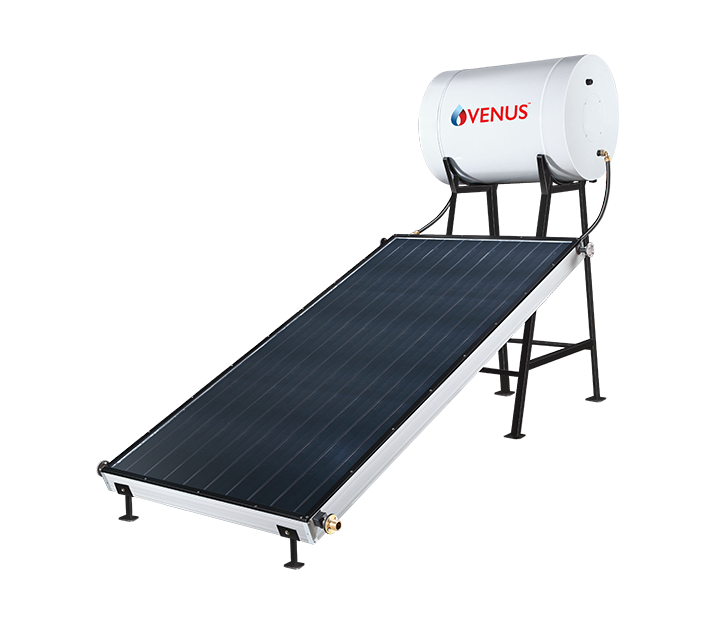

Flat plate collector
Flat plate collector with 100% copper fins coated in black for maximum absorption of solar radiation and effective heat transfer.
Backup electric
Backup electric heating element for cold / rainy days (optional).
MS stand - sturdy and rust resistant
Powder coated MS stand - sturdy and rust resistant Long life corrosion proof Pre coated outer cladding.
5 Bar Pressure.
Pressure pump compatible with 5 bar pressure rating..
Specification
Description
Capacity
FP Collector
Safety Devices (optional)
Pipe Connection
Electric Heating Element (Optional)
Rated Working Pressure
Daily Usage
Maximum No .of Outlets
HA100
100 LPD
1 No
Thermostat
3 / 4"
2 kw
5 bar (5 kg/cm2)
4 persons
2 nos
HA200
200 LPD
2 Nos
Thermostat
3 / 4"
2 kw
5 bar (5 kg/cm2)
8 persons
4 nos
Dimension (In mm)
Model
100Ltrs
200Ltrs
A
1750
1750
B
2300
2300
C
2030
2030
D
560
560
E
1030
2160
F
840
840
Installation
