Benefits
Energy savings from tapping into the renewable solar energy for your hot water requirements.
Accelerated depreciation upto 80% available.
Models are available from 300 litres up to 3000 litres and can be scaled up to meet Customer requirements
Hot water recirculation with an automated circulation pump which ensures hot water is available in seconds when the tap is opened (optional from 1000L and above).
Key Features
Epoxy coated:
Superior corrosion resistant Epoxy coated Inner tank.
Powder coated Outer body:
Long life corrosion proof Pre coated outer cladding, (Upto 1500 LPD).

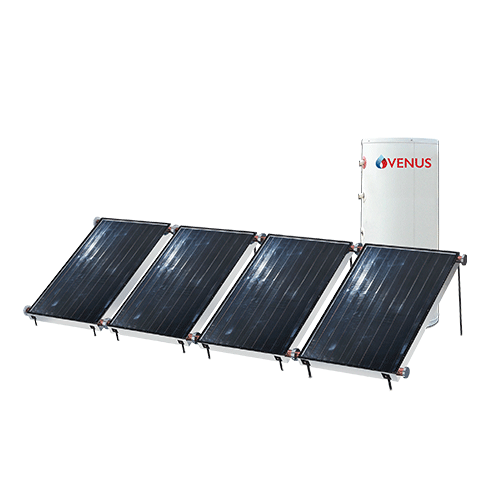

Flat plate collector
Flat Plate Collector made of Copper with Aluminium fins coated in black for maximum absorption of solar radiation and effective heat transfer
Powder coated MS stand
Powder coated MS stand - sturdy and rust resistant
Backup electric
Backup electric heating element for cold / rainy days(Optional)
.png)
Nitrile-rubber
Nitrile-rubber is an advanced technology insulation. Prevents heat loss & ensures higher energy efficiency (2000 LPD and above).
Aluminium outer cladding
Aluminium outer cladding (2000 LPD and above)
PUF insulation
5cm Thick PUF insulation for minimum heat loss (Upto 1500 LPD)

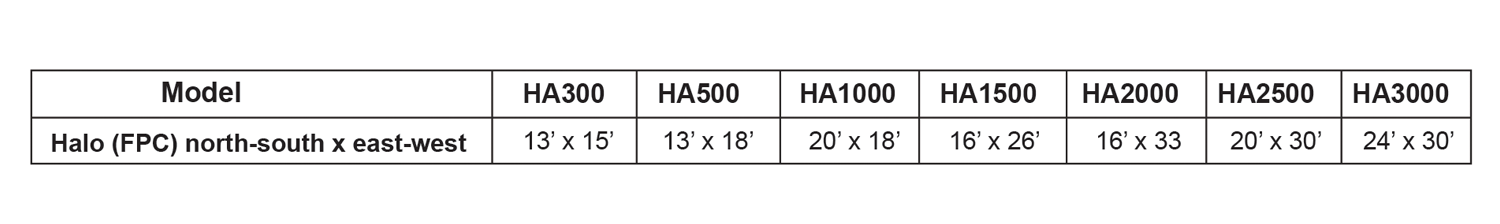

Specification
Product Area(In mm)
Model
Halo (FPC)north-south x east-west
HA300
13’x15’
HA500
13'x18'
HA1000
20'x18'
HA1500
16'x26'
HA2000
16'x33'
HA2500
20'x30'
HA3000
24'x30'
Product Specifications
| Description | 300LPD | 500LPD | 1000LPD | 1500LPD | 2000LPD | 2500LPD | 3000LPD |
|---|---|---|---|---|---|---|---|
| Capacity | 300L per day | 500L per day | 1000L per day | 1500L per day | 2000L per day | 2500L per day | 3000L per day |
| No. of FP collectors | 3 | 4 | 8 | 12 | 16 | 20 | 24 |
| Safety Devices (optional) | Thermostat | ||||||
| Pipe Connection | 1” | 1” | Tank main inlet & outlet - 1 ½” & Solar circulation lines are 1” | ||||
| Rated Working Pressure | 5bar (kg/cm2) | ||||||
| Insulation Thickness) | 50 mm Injected PUF | 25 mm Nitrile Rubber | |||||
| Stand Angle | 28° | ||||||
| Daily Usage(persons) | 12 | 20 | 40 | 60 | 80 | 100 | 120 |
| Maximum No .of Outlets | 6 | 8 | 14 | 21 | 28 | 35 | 42 |
| Foot Print Area | 20 m2 | 22 m2 | 34 m2 | 39 m2 | 49 m2 | 56 m2 | 74 m2 |
| Guarantee* | 5 Years | 1 Year | |||||
Installation
.png)
