Working Principle

The Venus Vacuum Tube Collector solar water heater is made up of rows of parallel, transparent glass tubes. Each tube consists of a glass outer tube and an inner tube, or absorber, covered with a selective coating that absorbs solar energy well but inhibits radioactive heat loss. The air is withdrawn ("evacuated") from the space between the tubes to form a vacuum, which eliminates conductive and convective heat loss.

The Vacuum tube collector absorbs the heat from the solar radiation & heats up the water stored in the system through the Thermosiphonic effect.

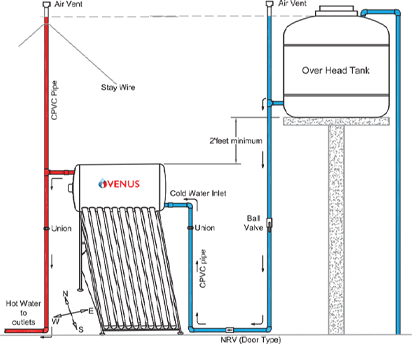

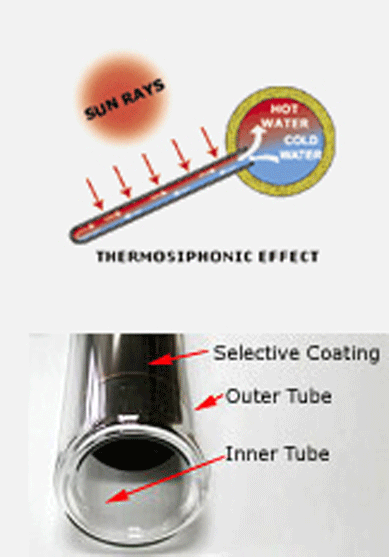

What is Thermosiphonic Effect

A thermosiphon system relies on warm water rising, a phenomenon known as natural convection, to circulate water through the collectors and to the tank. In this type of installation, the tank must be above the collector. As water in the collector heats, it becomes lighter and rises naturally into the tank above. Meanwhile, cooler water in the tank flows down pipes to the bottom of the collector, causing circulation throughout the system. This is called Thermosiphonic Effect. This process continues steadily for a numer of hours till the water stored in the tank is heated up. Very high Temperatures upto 80-85°C can be had from such a system.

The water heated in this manner is stored overnight in the insulated storage tank and is available for use the next day.

Indirect Heating Technology

Venus Jacketed solar water heater has a heat conducting fluid (Mineral water / Glycol) circulating around the inner tank - thereby heating the water indirectly without the ground water coming in contact with the collector. This indirect heating System is most suited for hard water areas as the jacket ensures that no scaling is formed in the collector ensuring trouble - free Performance.

heating  technology

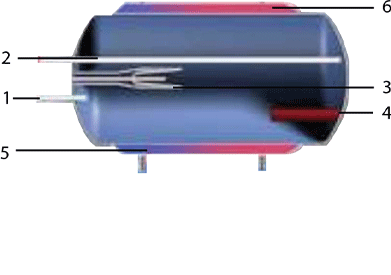

Indirect Heating Technology
1. Inlet
2. Outlet
3. Heating Element
4. Anode
5. Cold Water
6. Hot Water
