Get non-stop hot water anywhere in the house while saving as much as 75-80% on your heating costs.
A solitary heat pump installed anywhere in the house can supply hot water to all the bathrooms and kitchens.

domestic inner banner domestic inner banner1 domestic inner banner2 domestic inner banner3

HOW DOES A HEAT PUMP WORK

Major components of a heat pump water heater include a compressor, a refrigerant, two heat exchangers (a condenser and an evaporator) and an expansion valve.

The operation begins with air being forced through an evaporator which contains a liquid refrigerant, with the help of a fan.

This refrigerant evaporates to a gas and extracts heat from the ambient air.

The warm gaseous refrigerant then passes through the compressor, which increases its pressure and it becomes a hot gas.

This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.

The refrigerant cools down in the condenser and becomes a warm liquid.

It then passes through an expansion valve and becomes a cool liquid and enters the evaporator again.

The cycle is then repeated in this manner.

Thus heat absorbed from the air is transferred to the water and the heating continues till the desired temperature is reached.

KEY FEATURES

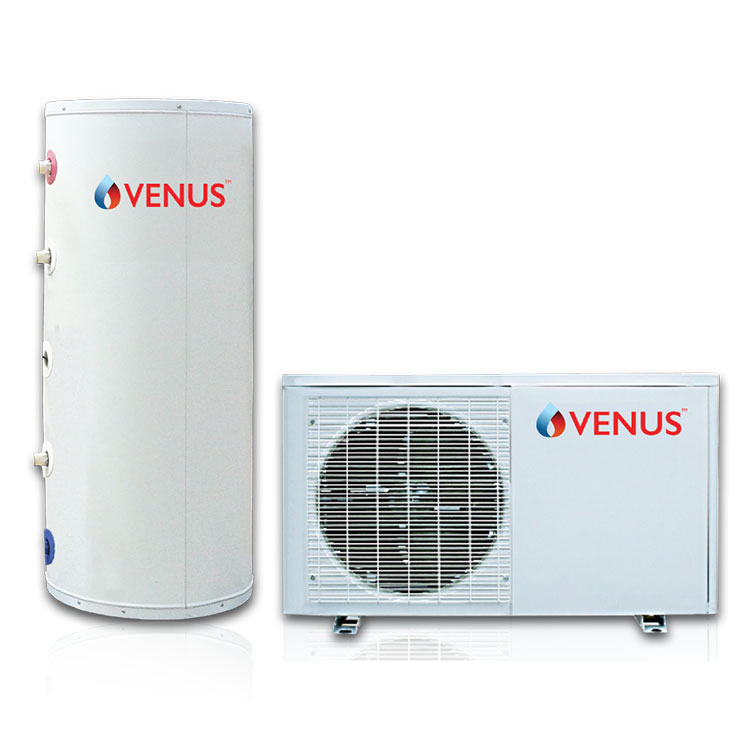

Split type system for flexible installation - external and internal units

Water Circulation and Technology - Safe & Reliable no mixing of refrigerant and water

Rugged and reliable rotary compressor

High energy efficiency - COP of 4.2

Intelligent automatic LCD controller to set temperature and time options

Available with 100 litres 200 litres & 300 litres tank

Enamel coated tank for water storage to withstand corrosion

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW

High rated pressure of 7 bar - designed to work with pressure pumps

Can be combined with a circulation pump to deliver hot water within seconds anywhere in the house

Features

Split system for flexible installation

Split system for flexible installation

It consists of external and internal units for installation.

hp-nm-hp-high-energy4.2

High Energy Efficiency - COP of 4.2:

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW COP of 4.2


Low operating cost - more savings

Low operating cost - more savings:

More savings as the operating costs are low.

Water circulation technology

Water circulation technology:

Safe and reliable water circulation technology that ensures no mixing of refrigerant and water.

Porcelain-enamel-glass-tank

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Intelligent Electronic controller

Intelligent Electronic controller:

Intelligent automatic LCD controller to set temperature and time options.

Expansion-valve

Expansion valve:

The expansion valve is an important component in the Heat pump water heater operation.

hp-mn-hp-reliable-compressor

Compressor - heart of the heat pump:

The compressor is the heart of the heat pump operation. Rugged and Reliable rotary compressor.

WILO-Pump

Circulation Pump:

The circulation pump circulates hot water from the storage tank to the heat pump to enable heat transfer.

Specification

Description

-

VDHX3i

VDHX5i

VDHX8i

Rated Heating Capacity

Rated Heating Capacity

Rated Hot Water Output - Inlet Water Temp.15°C

Rated Hot Water Output - Inlet Water Temp.20°C

Rated Hot Water Output - Inlet Water Temp.25°C

Rated Hot Water Output - Inlet Water Temp.30°C

Rated Heating power input

Operating Current

Power supply

COP

Rated output water temperature

Max outlet water temp

Compressor type

Water side heat exchanger

Dimension (A x B x C )

Noise level

Fan discharging

Ambient temperature

Refrigerant

Water connection

Cabinet

Suggested water tank

Net weight

Gross weight

Guarantee (Heat Pump)

Guarantee (Tank)

KW

BTU/h

L/h

L/h

L/h

L/h

kW

A

V/PH/Hz

W/W

°C

°C

-

Type

mm

dB(A)

Type

°C

Type

-

-

Liter

Kg

Kg

-

-

3.5

11940

75

85

100

120

0.83

3.8

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

930 x 360 x 550

<45dB(A)

Horizontal

(-)7 - 43

R410A

3/4”

Powder Coated

100-300

45

55

2 years

5 years

5.0

17060

110

125

145

172

1.19

5.4

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

930 x 360 x 550

<47dB(A)

Horizontal

(-)7-43

R410A

3/4”

Powder Coated

500

55

65

2 years

5 years

7.5

25590

160

185

215

260

1.79

8.2

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

865 x 465 x 795

<50dB(A)

Horizontal

(-)7-43

R410A

3/4”

Powder Coated

1000

80

90

2 years

1 years

Tank dimension:
-
100 Lts
200 Lts
300 Lts
500 Lts
1000 Lts
D E
510 1000
560 1385
750 1650
- -
- -
D E
- -
- -
- -
1100 1400
- -
D E
- -
- -
- -
- -
1300 1900

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C. * Conditions apply.
* Specifications subject to change without prior notice

Domestic HP hp-diagram

Specification

Description

Rated Heating Capacity

Rated Heating Capacity

Rated Hot Water Output - Inlet Water Temp.15°C

Rated Hot Water Output - Inlet Water Temp.20°C

Rated Hot Water Output - Inlet Water Temp.25°C

Rated Hot Water Output - Inlet Water Temp.30°C

Rated Heating power input

Operating Current

Power supply

COP

Rated output water temperature

Max outlet water temp

Compressor type

Water side heat exchanger

Dimension (A x B x C )

Noise level

Fan discharging

Ambient temperature

Refrigerant

Water connection

Cabinet

Suggested water tank

Net weight

Gross weight

Guarantee (Heat Pump)

Guarantee (Tank)

Tank dimension:

-

KW

BTU/h

L/h

L/h

L/h

L/h

kW

A

V/PH/Hz

W/W

°C

°C

-

Type

mm

dB(A)

Type

°C

Type

-

-

Liter

Kg

Kg

-

-

-

100 Lts

200 Lts

300 Lts

500 Lts

1000 Lts

VDHX3i

3.5

11940

75

85

100

120

0.83

3.8

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

930 x 360 x 550

<45dB(A)

Horizontal

(-)7 - 43

R410A

3/4”

Powder Coated

100-300

45

55

2 years

5 years

D E
510 1000
560 1385
750 1650
- -
- -

VDHX5i

5.0

17060

110

125

145

172

1.19

5.4

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

930 x 360 x 550

<47dB(A)

Horizontal

(-)7-43

R410A

3/4”

Powder Coated

500

55

65

2 years

5 years

D E
- -
- -
- -
1100 1400
- -

VDHX8i

7.5

25590

160

185

215

260

1.79

8.2

220-240V / 1PH / 60-50Hz

4.2

55

60

Rotary × 1

Tube - Tube

865 x 465 x 795

<50dB(A)

Horizontal

(-)7-43

R410A

3/4”

Powder Coated

1000

80

90

2 years

1 years

D E
- -
- -
- -
- -
1300 1900

Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C. * Conditions apply.
* Specifications subject to change without prior notice
