Key Features

brio-winter-summer

Winter / Summer function:

The User can use the Gas Water heater in accordance with the changing climatic conditions be it Summer or Winter and get cold or hot water respectively.

Gas-brio-3-control

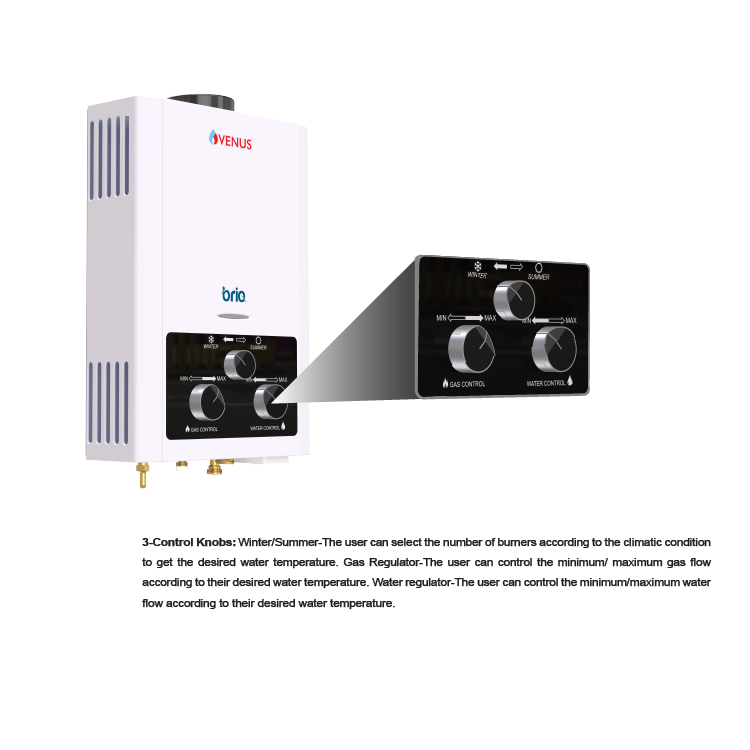

3-Control Knobs:

The User can select the number of Burners according to the room temperature to get the desired Water heater temperature.

Brio-copper-heat

Copper Heat Exchanger:

The heavy 1.2Kg copper heat exchanger will transfer the thermal energy to the water which flows around/top of the chamber effectively which results in faster heating.

gas-brio-Auto-Pulse-Ignition-Device

Auto Pulse Ignition Device:

After opening the hot water outlet tap the water flows out immediately, the PID will ignite the burner automatically sensing the water flow.

brio-Solenoid-Gas-Valve

Solenoid Gas Valve :

The Solenoid valve provided to control the flow of gas on/off automatically which gives a safety for the water heater.(In VGB612 - 2nos and VGBS610 - 1no Provided)

brio-Pressure

Pressure Release Valve:

When the pressure of the inlet water supply is too high the PRV automatically relieves excess pressure.

gas-brio-Auto-flame-out-protection

Auto flame-out protection:

The water heater will automatically cut-off the gas to ensure that gas does not leak when it flames out accidentally during the use.

brio-Overheating Protection

Overheating Protection:

The water heater will automatically cut-off the gas and stop working when the temperature of the water flowing out exceeds 80°C..

Specification

Vertical

Model No. :

Rated Heat Output :

Hot water Flow rate maximum :

Battery:

Gas type and pressure:

Suitable water pressure:

Ignition:


Connection Pipe Specification :
Gas Inlet
Cold Water Inlet
Hot water Inlet
Safety Devices

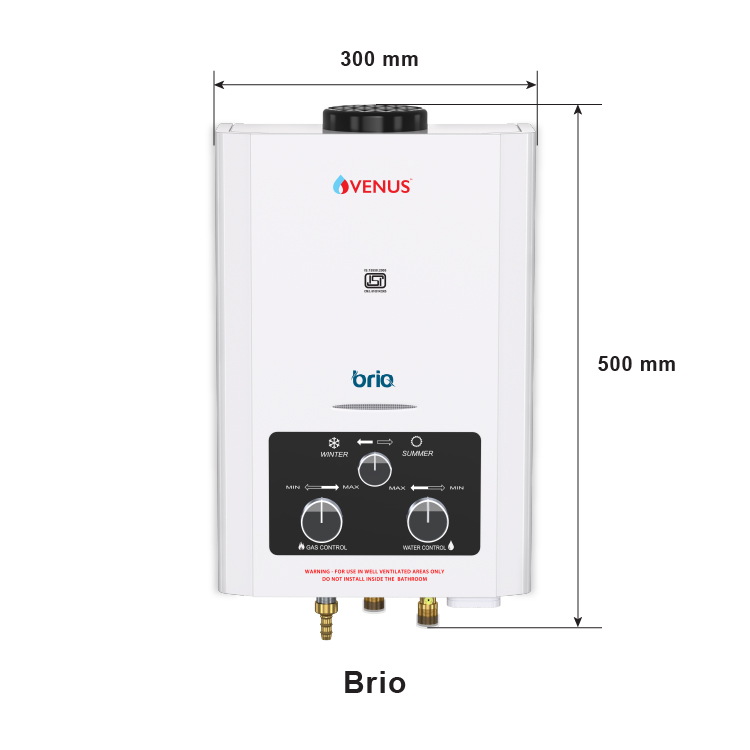

Dimensions (L x W x H) mm

VGBS612

12kW

6L/min

1.5V x 2nos.

LPG - 3000 Pa

0.02 - 0.008 MPa

Automatic Electrical Pulse Ignition

1/2 Inch BSP

1/2 Inch BSP

1/2 Inch BSP

VGBS610

10kW

5.5L/min

1.5V x 2nos.

LPG - 3000 Pa

0.08 - 0.008 MPa

Automatic Electrical Pulse Ignition

1/2 Inch BSP

1/2 Inch BSP

1/2 Inch BSP

* Specifications subject to change without prior notice
