vestra inner

Key Features

100_ Copper Coil Reliable Motor

100 % Copper:

100% Copper Winding for long time running.

easy installation

Easy Installation:

The Mounting Bracket is easier to fit in and ensures Easy Installation

Protection

Protection:

Louvre type design for privacy and protection from wind, rain and dust..

ABS body

ABS Body:

strong and rustproof ABS plastic.

exhaust fan 1

Bush Bearing:

Smooth Operation.

Thermal-Cutout-Safety-Device

Thermal Cutout:

Bulit-in safety protection.

Specification

Model Name :

Model No :

Exhaust Outlet type

Sweep

Air delivery

Speed Rpm

Power in watts

Rated Voltage

Colour

Vestra

APC10-0-2S

Round

100 MM

1.30

2500

12

220 -240 Volts, 50Hz Ac Single Phase

White

Vestra

APC15-2-2S

Round

150 MM

2.60

1500

15

220 -240 Volts, 50Hz Ac Single Phase

White

DIMENSIONS (MM)

Model :

Installation Space (mm):

Applicable Area (m2) :


Model no :
A
B
C
D
E

Vestra

116

4-7

150

133.5

99

108

44

Vestra

166

7-10

200

182.5

148

123

52

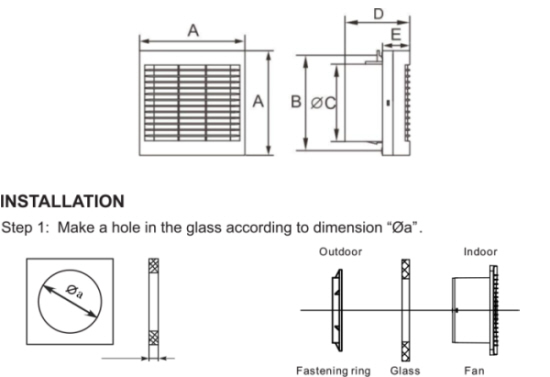

vestra-linediagram
