Key Features

eco friendly

Eco-friendly Refrigerant:

Eco friendly technology as an Eco friendly refrigerant is used.

hp of hot water

Higher requirements of hot water:

Can be scaled to meet any requirement of hot water - 500 L & above.


Low operating cost - more savings

Low operating cost - more savings:

Heat input as low as 2.86 kW; delivers heat output up to 12 kW (for VCHX10i model).- More Savings.

heating-capacity-80deg

Heating capacity upto 80°C:

Upto 80°C hot water temperature can be achieved.

wate-circulation

Water circulation technology:

Safe and reliable water circulation technology that ensures no mixing of refrigerant and water.

Intelligent-Electronic-controller

Intelligent Electronic controller:

Intelligent automatic LCD controller to set temperature and time options.

Expansion valve

Expansion valve:

The expansion valve is an important component in the Heat pump water heater operation.

Compressor - heart of the heat pump

Compressor - heart of the heat pump:

Rugged and reliable Scroll compressor with high efficiency heat exchanger - reliable and durable.

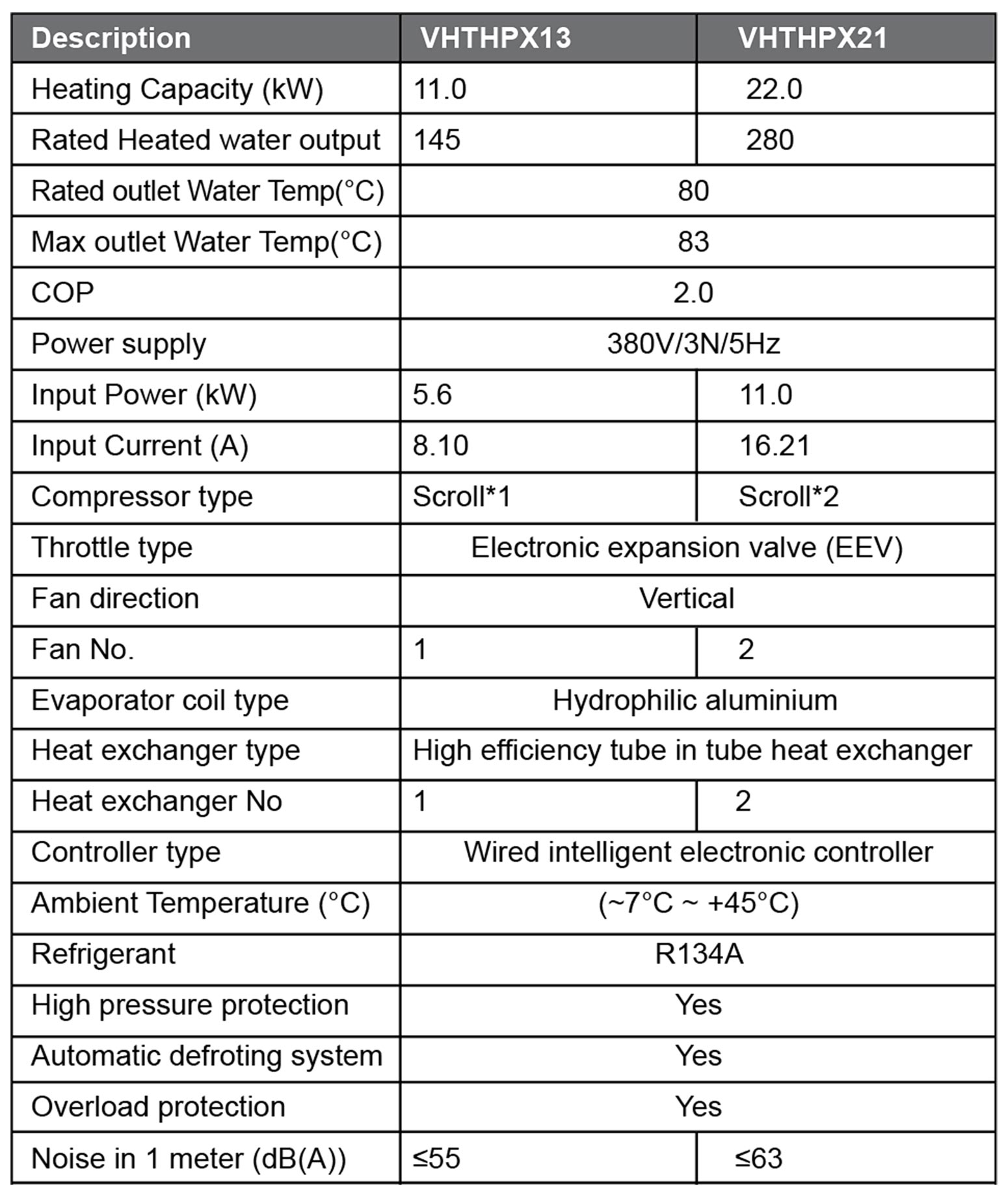

Specification

Description :

Heating Capacity (kW)

Rated Heated water output

Rated outlet Water Temp(°C)

Max outlet Water Temp(°C)

Power supply

Input power (KW) :

Input Current (A)

Compressor type

Throttle type

Fan direction

Fan No.

Fan Input power (W)

Evaporator fan type

Heat exchanger type

Heat exchanger No

Controller type

Ambient Temperature (°C)

Refrigerant

High pressure protection

Automatic defroting system

Overload protection

Noise in 1 meter (dB(A))

Water flow volume m3h

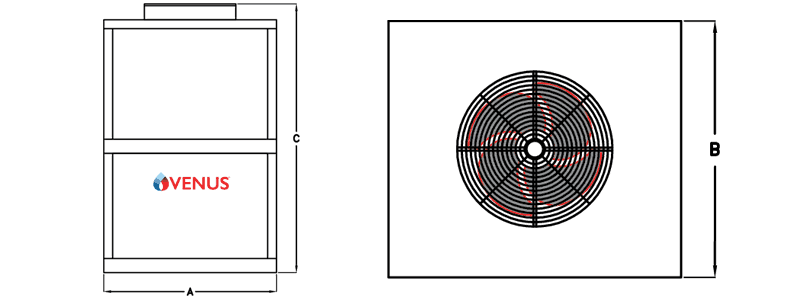

Product Dimension (mm)

Net weight (kg)

VHTHP13

12.7

185

75

80

380V/3N/5Hz

4.1

7.4

Scroll*1"

Electronic expansion valve (EEV)

Vertical

1

250

Hydrophilic aluminium

High efficiency tube in tube heat exchanger

1

Intelligent & LCD

(-10°C - +45°C)

R134A

Yes

Yes

Yes

<58

4.0

A B C
855 x 775 x 1095

160

VHTHP18

17.8

260

75

80

380V/3N/5Hz

5.8

10.4

Scroll*1

Electronic expansion valve (EEV)

Vertical

1

250

Hydrophilic aluminium

High efficiency tube in tube heat exchanger

1

Intelligent & LCD

(-10°C - +45°C)

R134A

Yes

Yes

Yes

<60

5.0

A B C
855 x 775 x 1095

200

VHTHP26

25.5

370

75

80

380V/3N/5Hz

8.3

14.8

Scroll*2

Electronic expansion valve (EEV)

Vertical

2

250

Hydrophilic aluminium

High efficiency tube in tube heat exchanger

2

Intelligent & LCD

(-10°C - +45°C)

R134A

Yes

Yes

Yes

<63

8.0

A B C
1550 x 845 x 1180

400

VHTHP38

38.3

555

75

80

380V/3N/5Hz

12.4

22.2

Scroll*2

Electronic expansion valve (EEV)

Vertical

2

250

Hydrophilic aluminium

High efficiency tube in tube heat exchanger

2

Intelligent & LCD

(-10°C - +45°C)

R134A

Yes

Yes

Yes

<66

12.0

A B C
1585 x 850 x 1525

480

Higher capacity models (51kW, 64kW etc.) are also available.
* Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/75°C.
* Specifications subject to change without prior notice
