Key Features

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

splash feature 03

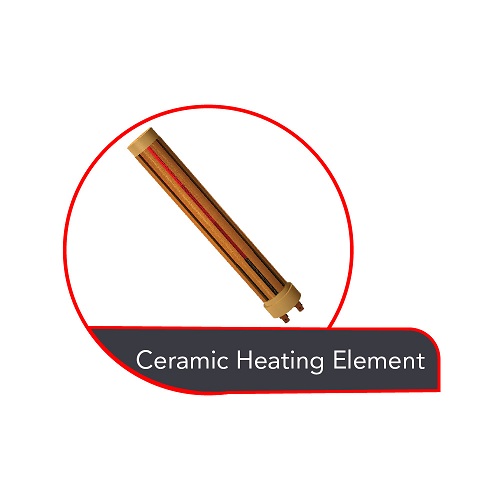

Ceramic Heating Element:

Withstands temperatures upto 1000°C. Long lasting,even in hard water.

puf-Nemonic

PUF Insulation:

Reduces heat losses and keeps water hot for much longer.

capillary-thermal-cutout

Capillary Thermal Cutout:

Backup safety device. Cuts off power at 95°C. Prevents overheating.

Magnisium anode

Sacrificial Magnesium Anode:

A Special device to enhance the corrosion protection of the tank by means of "Cathode Action"

8 bar

8 Bars Pressure:

Suitable for pressure pumps and multi - storey buildings.

Porcelain Enamel Tanks

Porcelain Enameling - by Powder Enamel is the latest technology from Europe and brought to India for the first time by Venus. Porcelain Enamel is a glass - like coating which is fused at 830°C to create a mechanical bond with the metal substrate. This makes the vitreous enamel layer robust and insert, protecting and underlying steel from rust and corrosion.

Scaleguard

Scale Guard Technology

Scaleguard

In Ceramic heating element heat is transferred over a much larger surface area, which reduces the stress on heating element, lowers watts density/sq.cm and ensures less scale deposition on heating element.

Buyers Network

export-map

Specification

Model :

Capacity :

Rated Power (GVX) :

Rated Power (GVX i) :

Rated Pressure:

Rated Voltage:

Time required to raise temp.:

Gross / Net Weight:

Mount:

IP Rating:

ERP:


Dimensions (in mm) :
A
B
C

15GVX

15

1000 W x 2 nos

1200/1500/2000

8

230/50

0:29min

15.19/12.82

Vertical

IPX4

C

313

505

313

30GVX

30

1000 W x 2 nos

1200/1500/2000

8

230/50

0:56min

22.87/20.15

Vertical

IPX4

C

363

580

363

50GVX

50

1000W x 2nos

1200/1500/2000

8

230/50

1:33min

27.64/22.49

Vertical

IPX4

C

462

590

462

80GVX

80

1000W x 2nos

1200/1500/2000

8

230/50

2:30min

33.07/27

Vertical

IPX4

E

462

810

462

100GVX

100

1000W x 2nos

1200/1500/2000

8

230/50

3:04min

41.100/34.14

Vertical

IPX4

E

462

1005

462

Other Sizes Available (150 Ltr)

* Specifications subject to change without prior notice
