Key Features

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Magnisium anode

Sacrificial Magnesium Anode:

A Special device to enhance the corrosion protection of the tank by means of "Cathode Action"

Glasslined

Glasslined Incoloy Element:

Withstands temperatures upto 1000°C. Long lasting,even in hard water.

capillary-thermal-cutout

Capillary Thermal Cutout:

Backup safety device. Cuts off power at 95°C. Prevents overheating.

puf-Nemonic

PUF Insulation:

Reduces heat losses and keeps water hot for much longer.

rust-proof-lids

Rust Proof Lids

Corrosion-free; With aesthetic design and stylish rust-free lids.

Porcelain Enamel Tanks

Porcelain Enameling - by Powder Enamel is the latest technology from Europe and brought to India for the first time by Venus. Porcelain Enamel is a glass - like coating which is fused at 830°C to create a mechanical bond with the metal substrate. This makes the vitreous enamel layer robust and insert, protecting and underlying steel from rust and corrosion.

Scaleguard

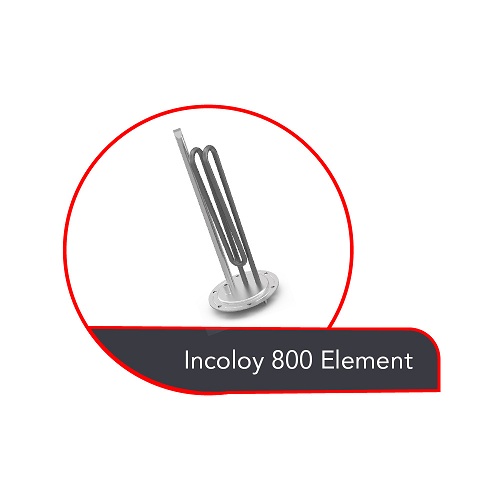

Glasslined Incoloy Heating Element

incoly

Incoloy is an alloy of steel, extremely durable under high temperatures. They can withstand temperatures up to 1000°C. Glasslined enamel Incoloy elements provide added protection. They are long-lasting even in hard water.

Buyers Network

export-map

Specification

Model :

Capacity :

Rated Power :

Rated Pressure:

Rated Voltage:

Time required to raise temp.:

Gross / Net Weight:

Mount:

IP Rating:

ERP:

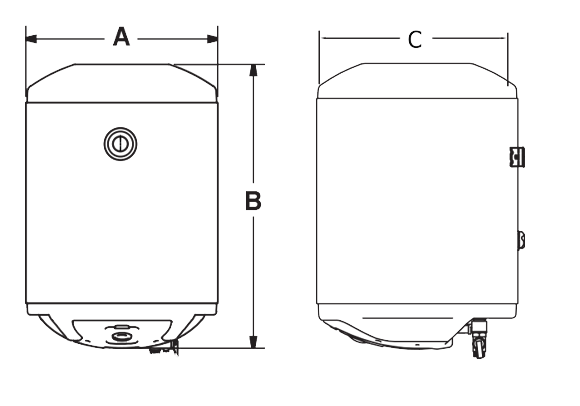

Dimensions (in mm) :
A
B
C

15EVX1

15

1200

8

230 / 50

0:48min

13.5/11.13

Vertical

IPX4

-

322

505

322

30EVX1

30

1200

8

230/50

1:30min

20.76/18.23

Vertical

IPX4

-

372

580

372

50EVX1

50

1200/1500

8

230 / 50

2:02min

22.0/19.2

Vertical

IPX4

D

441

560

441

80EVX1

80

1200/1500

8

230 / 50

3:16min

29.4/26.2

Vertical

IPX4

F

441

810

441

100EVX1

100

1200 / 1500

8

230 / 50

4:03min

34.0/30.4

Vertical

IPX4

F

441

950

441

Other Sizes Available (120, 150 & 200 Ltr)

* Specifications subject to change without prior notice
