Key Features

celo digital nm

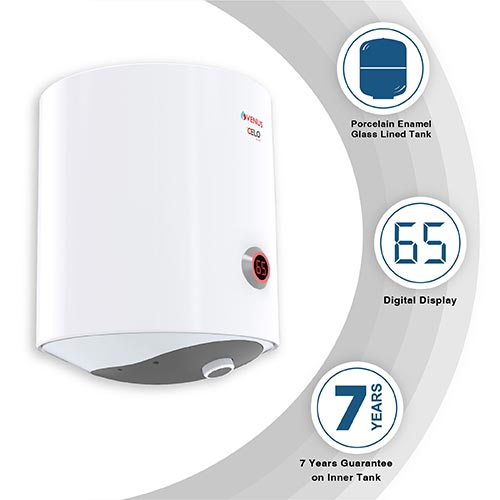

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

celo digital nm2

Glasslined Incoloy 800 element:

Withstands up to 1000°C. Long lasting, even in water. Reduces scale formation. Prevents element failure.

copper feature 4

Heat Retention Technology:

No Thermal Bridge between the Tank and the external Housing, there by enabling 16 % lower Thermal Losses.

puf-Nemonic

3cm thick PUF insulation:

3cm extra thick (PUF) insulation keeps the water hot for a much longer time and reduces energy consumption.

8 bar

8 Bars Pressure:

Suitable for pressure pumps and multi - storey buildings.

celo digital nm3

Digital Display:

For visual indication of temperature.

nexus feature 6

Sacrificial Magnesium Anode:

A special device to enhance the corrosion protection of the MG tank by means of “Cathodic action”.

Heat Retention Technology

No Thermal Bridge Between the tank and the external Housing, there by enabling 16% lower Thermal Losses.

Technology

Glasslined Incoloy Heating Element

Glasslined Incoloy Heating Element

Incoloy is an alloy of steel, extremely durable under high temperatures. They can withstand temperatures up to 1000°C. Glasslined enamel Incoloy elements provide added protection. They are long-lasting even in hard water.

Specification

Vertical

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 35°C :

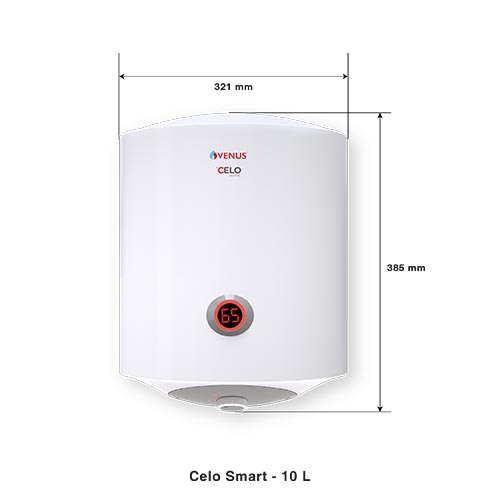

Dimensions (in mm) :
A
B
C
D

010CVD

2000

10

13min

385

321

201

015CVD

2000

15

20min

475

321

201

025CVD

2000

25

33min

530

371

201

050CVD

2000

50

64min

875

371

474

201

* Specifications subject to change without prior notice
