Key Features

lyra instant nm5

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

lyra instant nm2

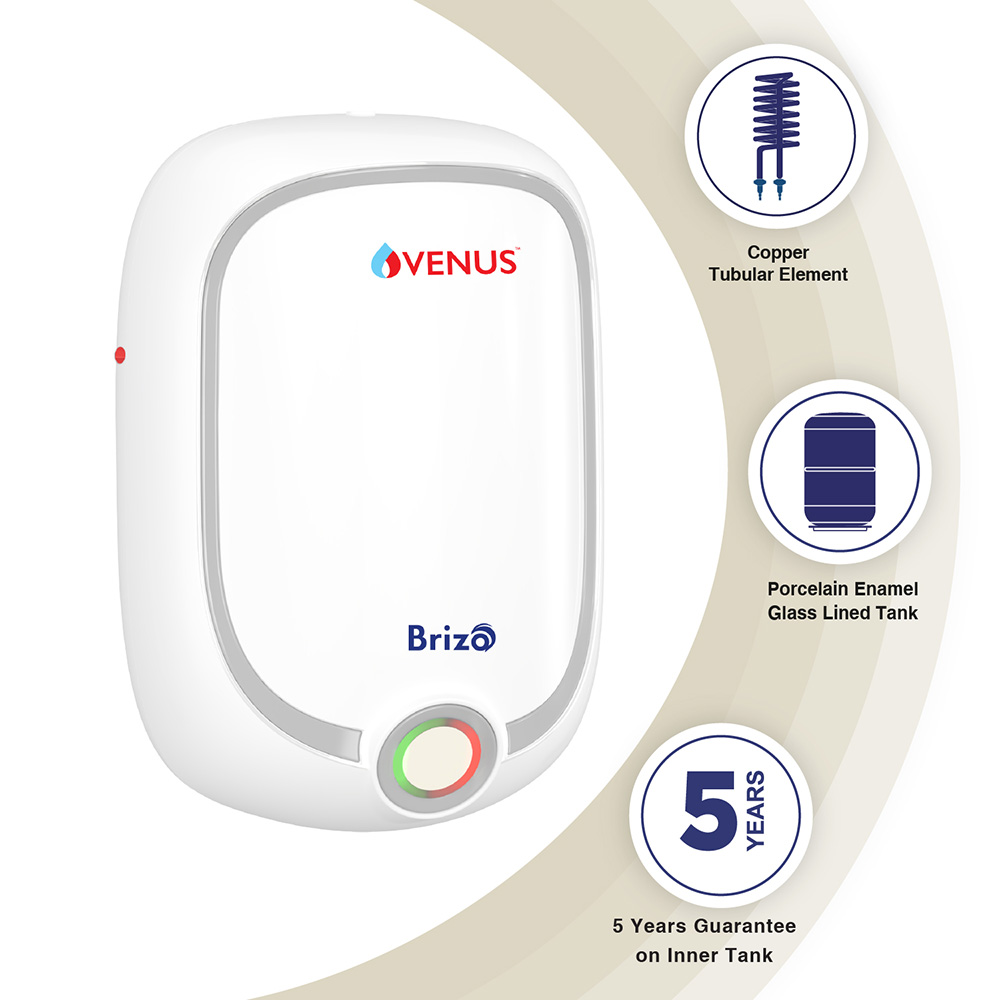

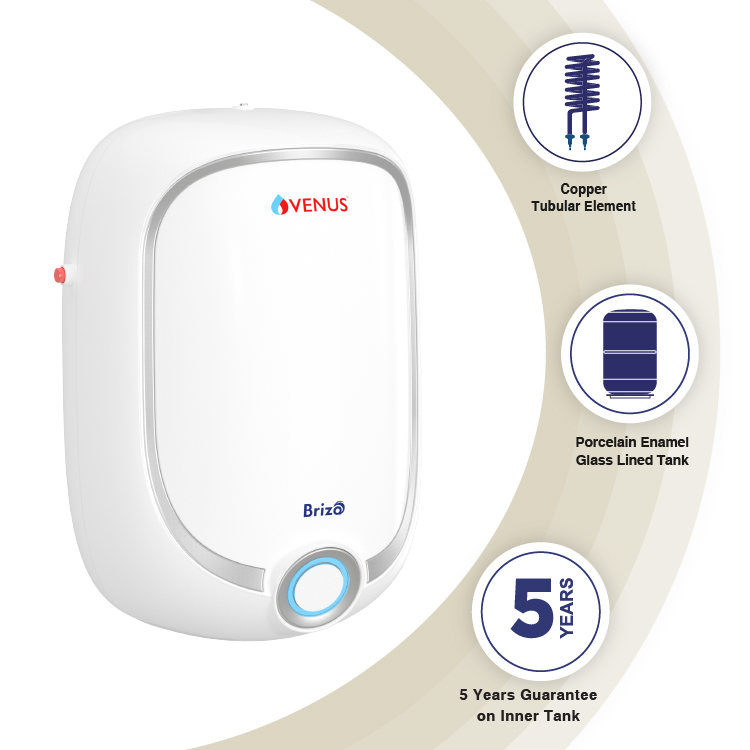

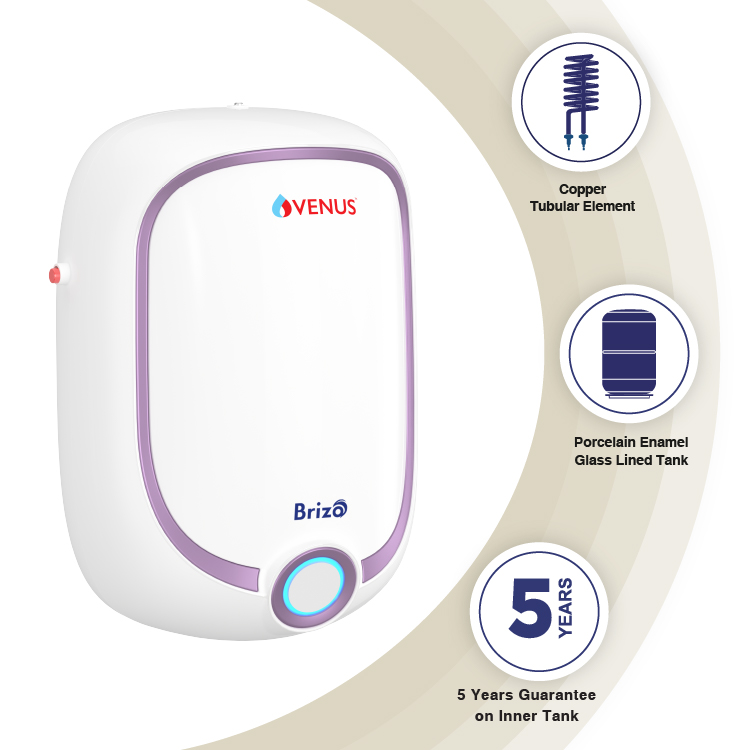

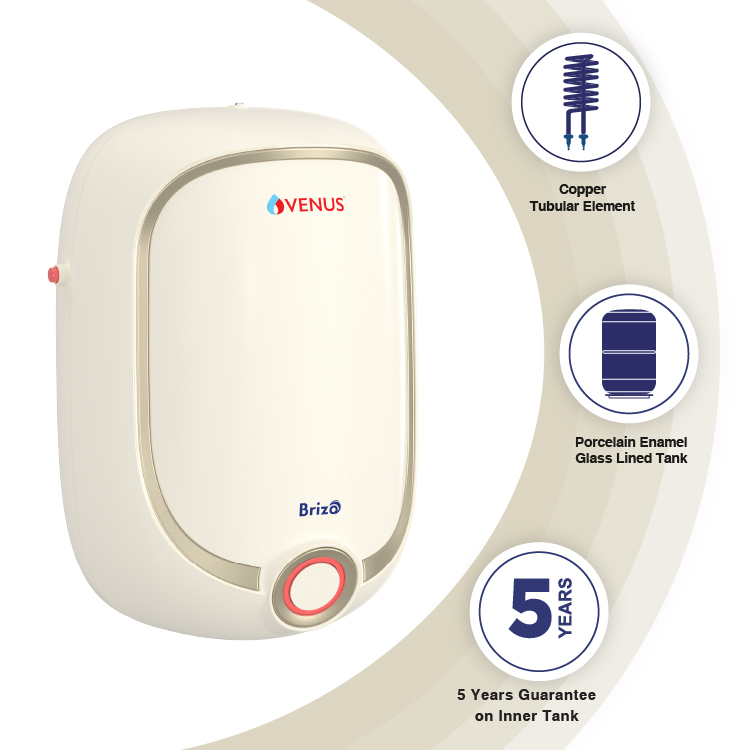

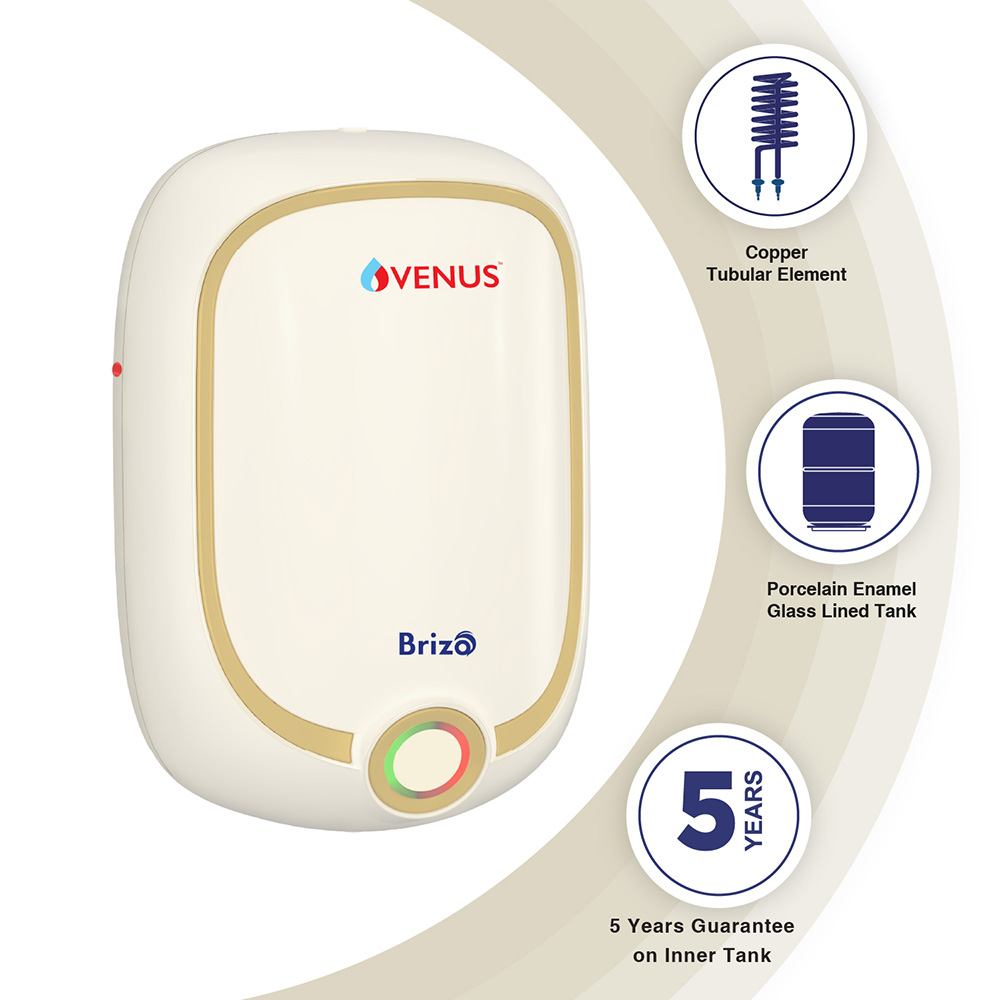

Copper Tubular Element:

High quality copper heating element for long life and performance.

lyra instant nm1

ABS Plastic Outer Body :

Compact. Corrosion free. Shock proof.

hunt nm5

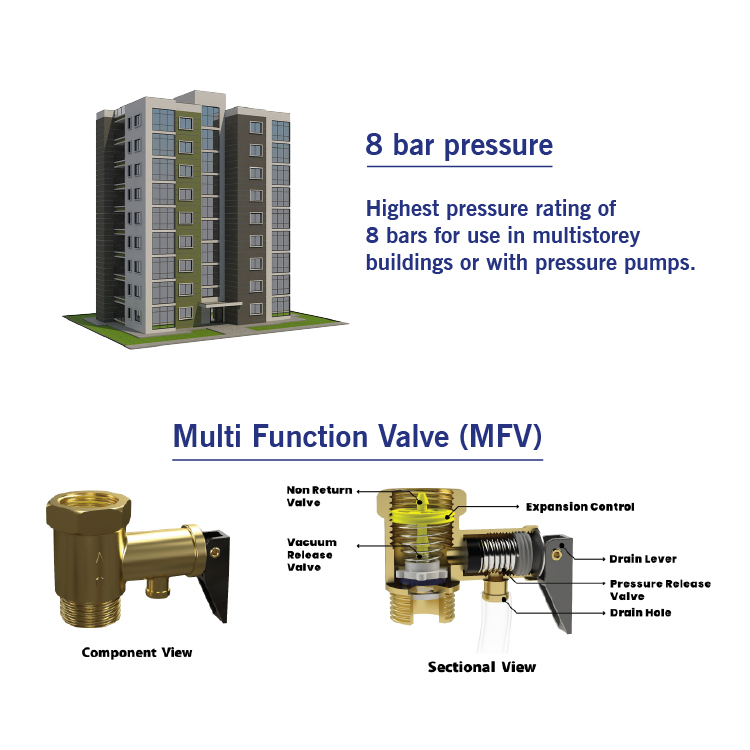

8 bar pressure:

Suitable for pressure pumps and multi-storey buildings.

copper feature 4

Capsule Polyurethane Foam (PUF) insulation:

Reduces heat loss and keeps water hot for much longer.

nexus feature 6

Sacrificial Magnesium Anode:

A special device to enhance the corrosion protection of the tank by means of "Cathodic action".

disc-cutout

Thermal Cutout:

Backup safety device cuts off power at 100°C. Prevents overheating.

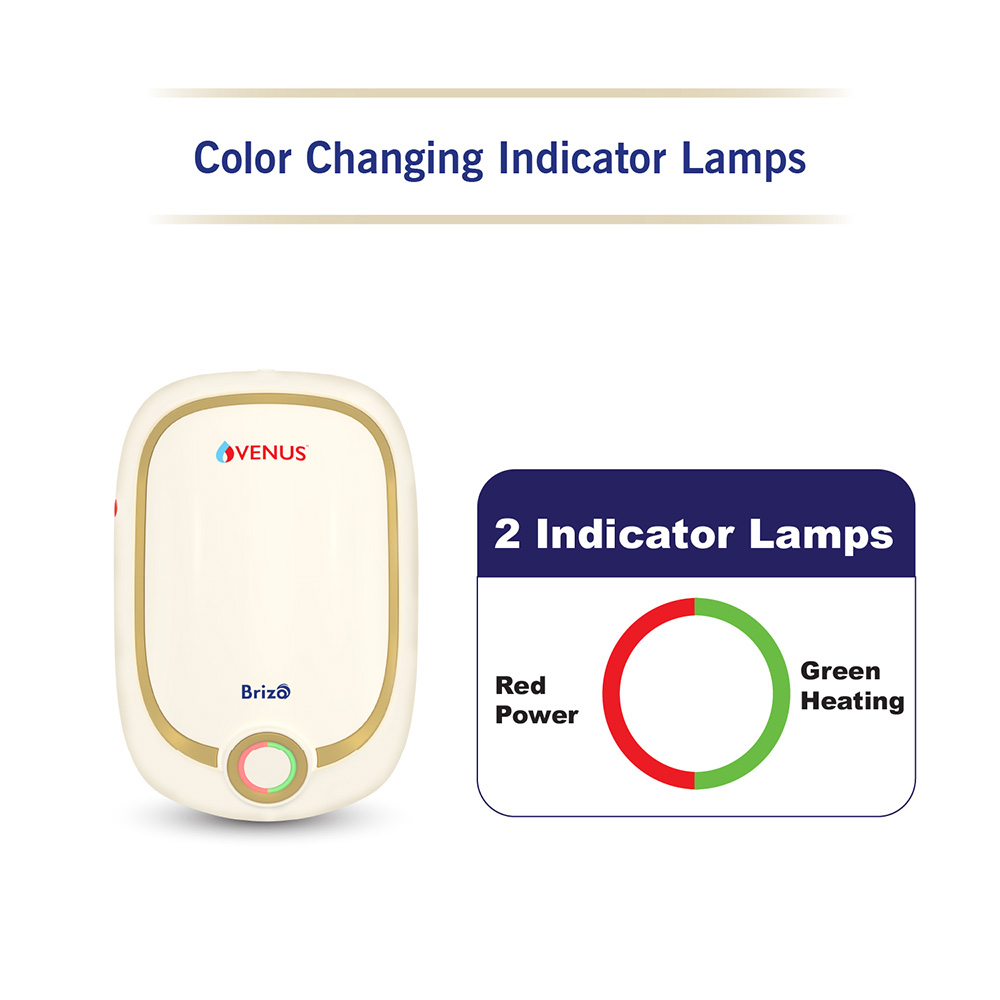

heating-3bb30

Green:Heating

power-3bb30

Red:Power

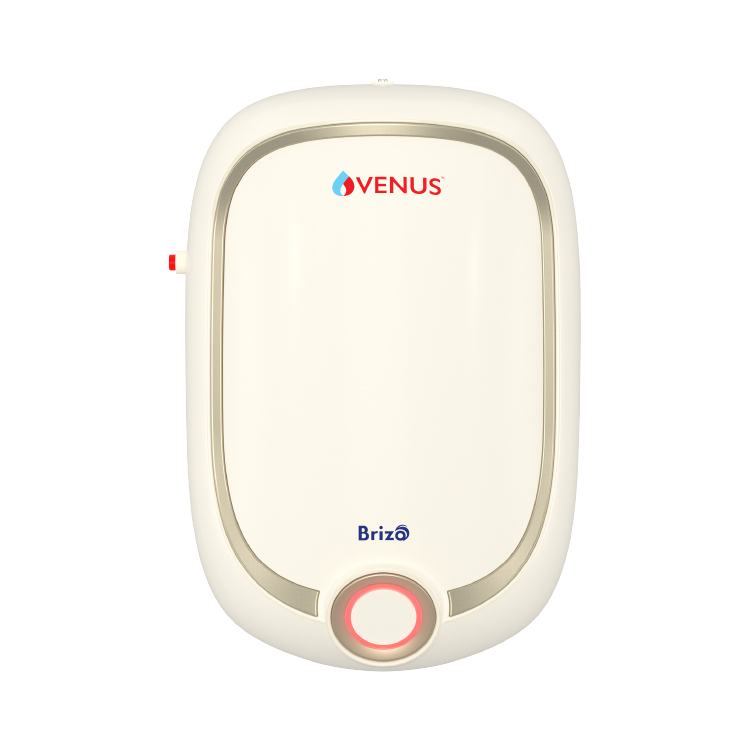

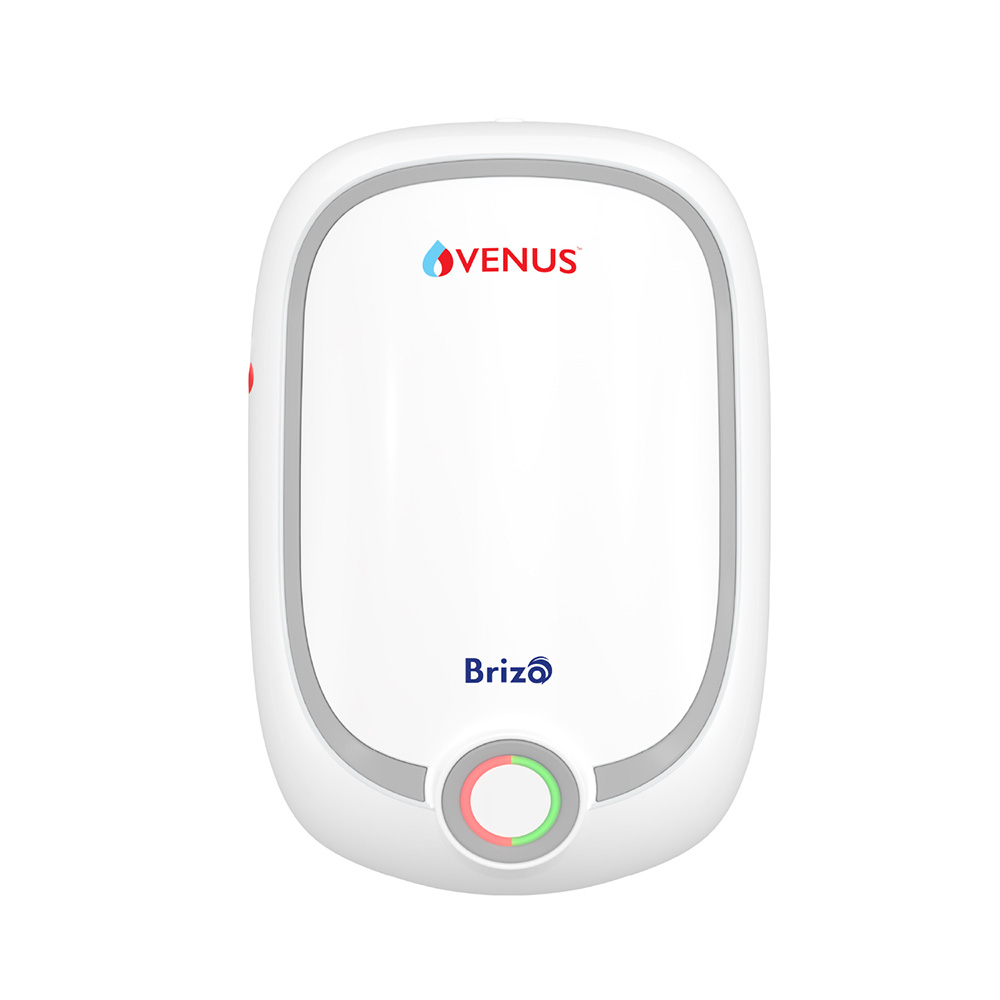

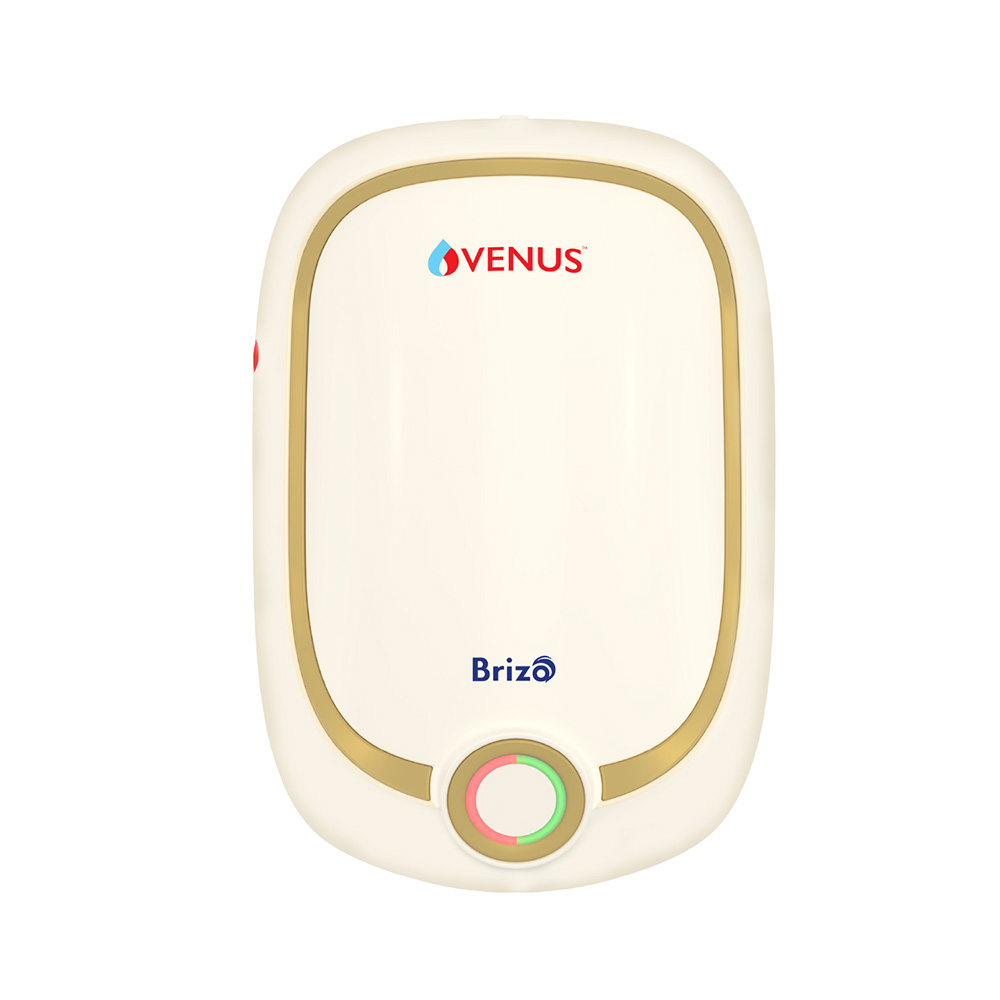

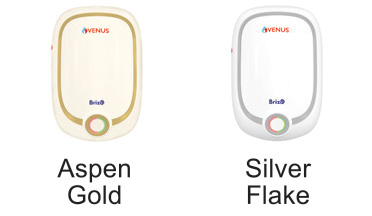

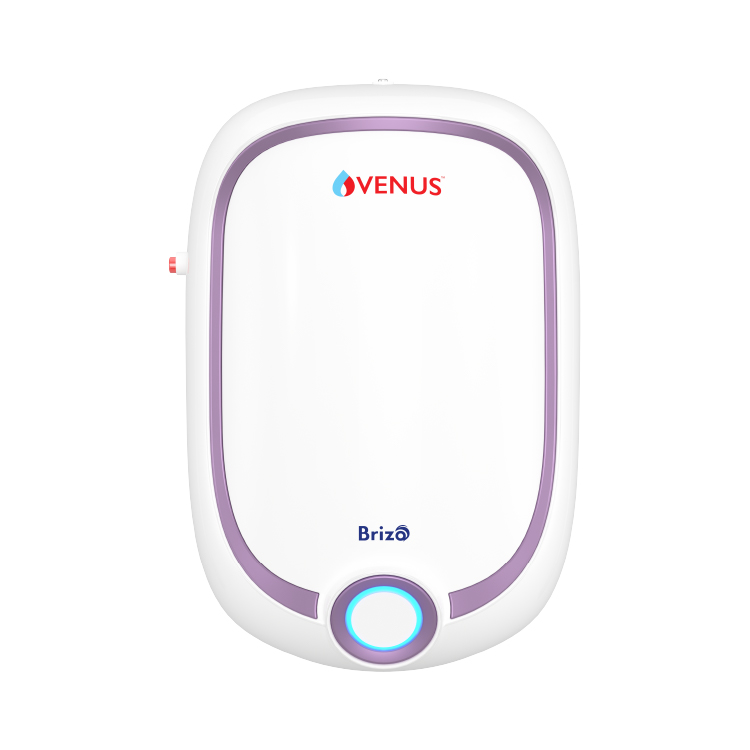

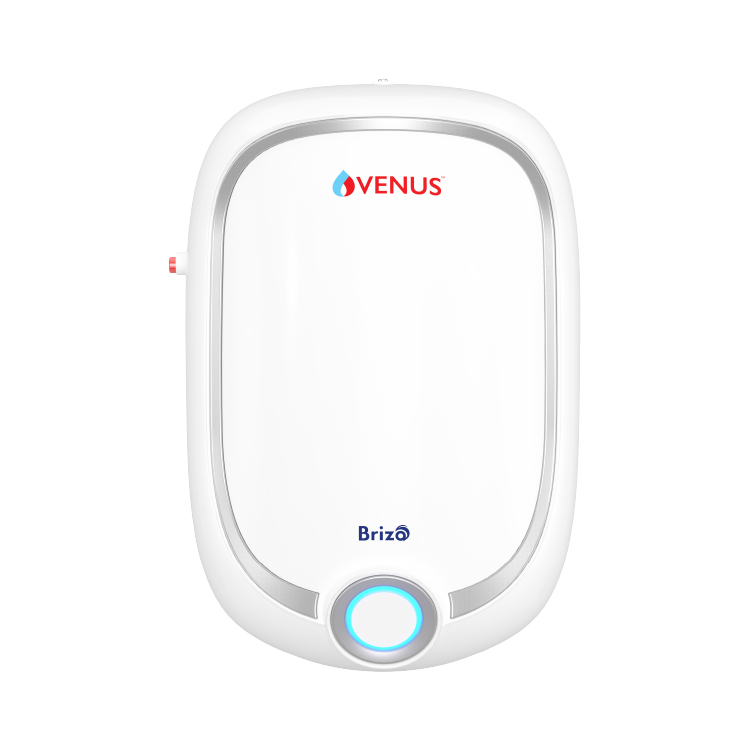

Brizo Available Colors:

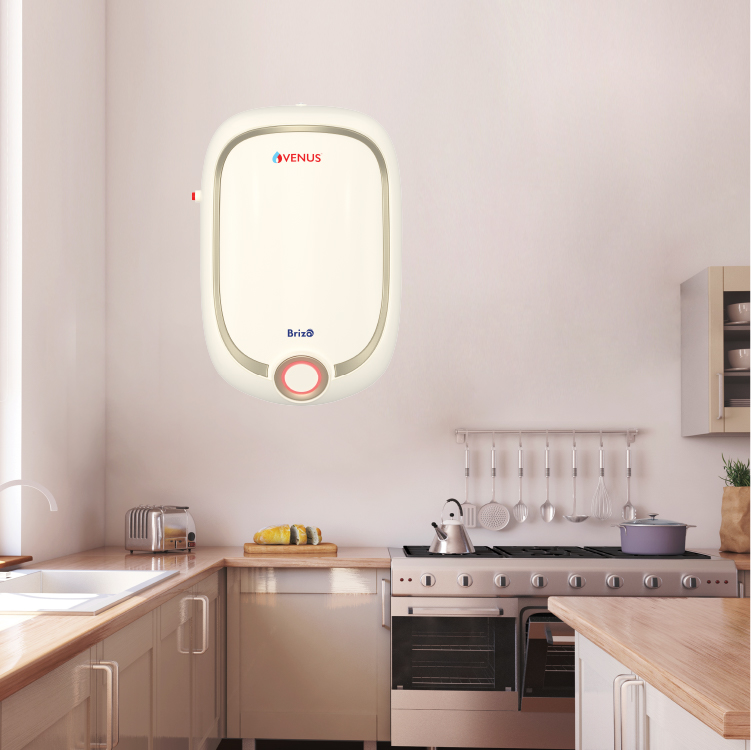

This elegantly designed water heater is available in two different exquisite colours- Aspen Gold and Silver Flake to add charm to your kitchen or bathroom.

brizo-color

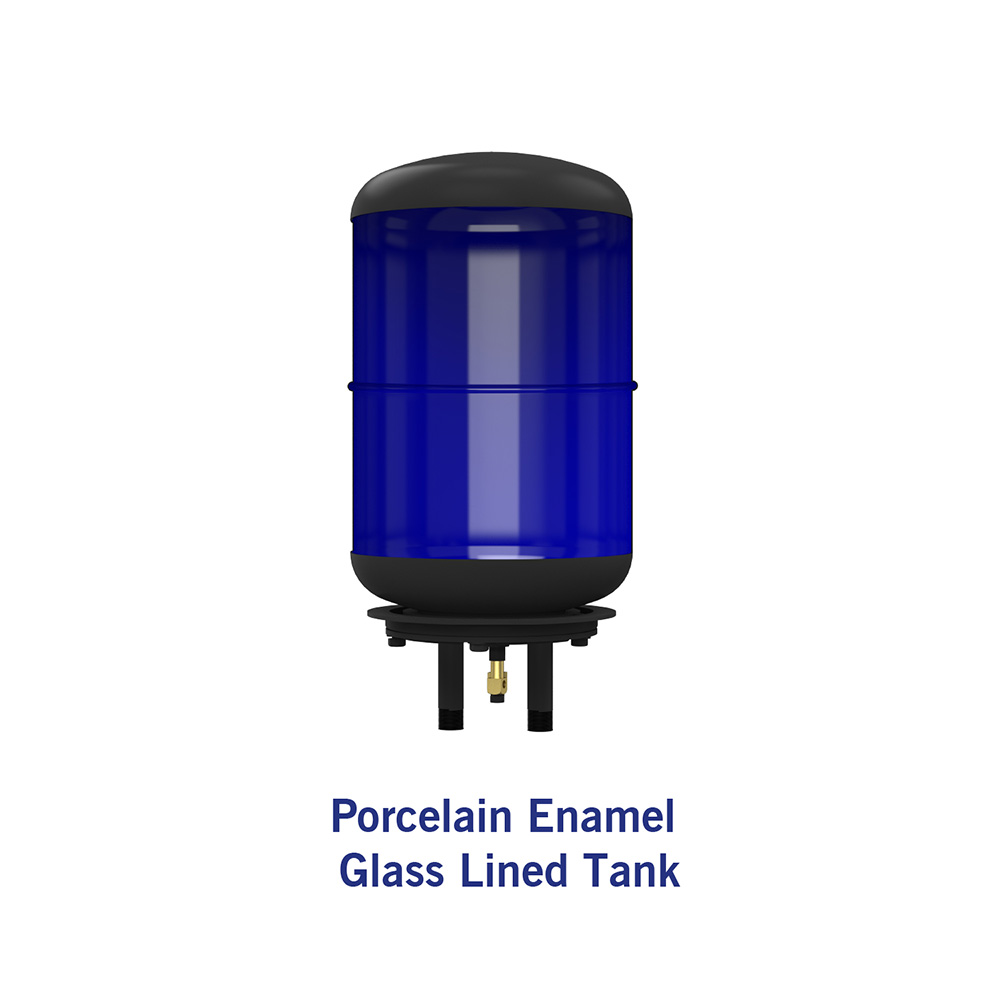

Porcelain Enamel Glass Lined Tank:

Porcelain Enameling

Porcelain enamel tanks are widely used internationally and are approved for use in water heaters by BIS, IEC,i DIN(German), UL(US) standards. In India, VENUS is the first manufacturer to start enameling with Dry Powder Enamel system which is superior to other types of coatings.

Specification

Vertical

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 3L/Min :

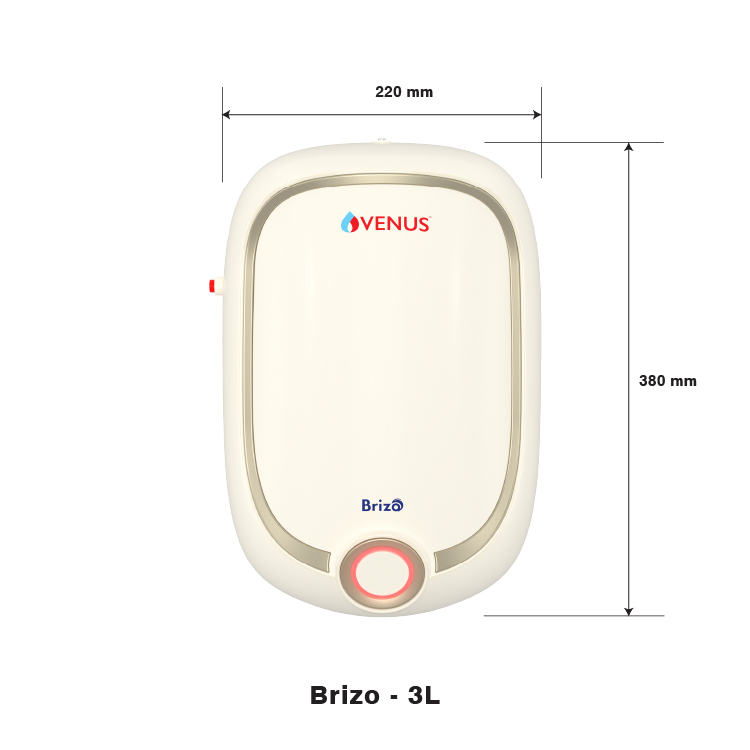

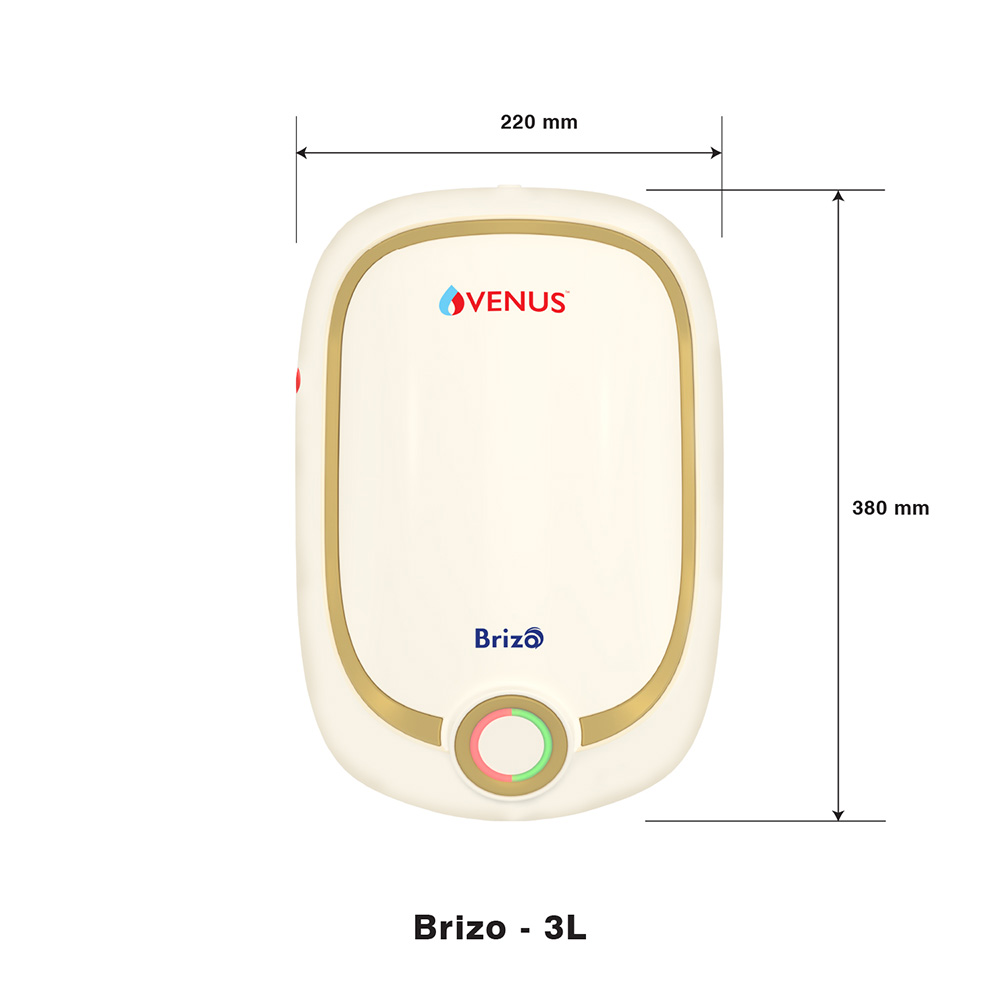

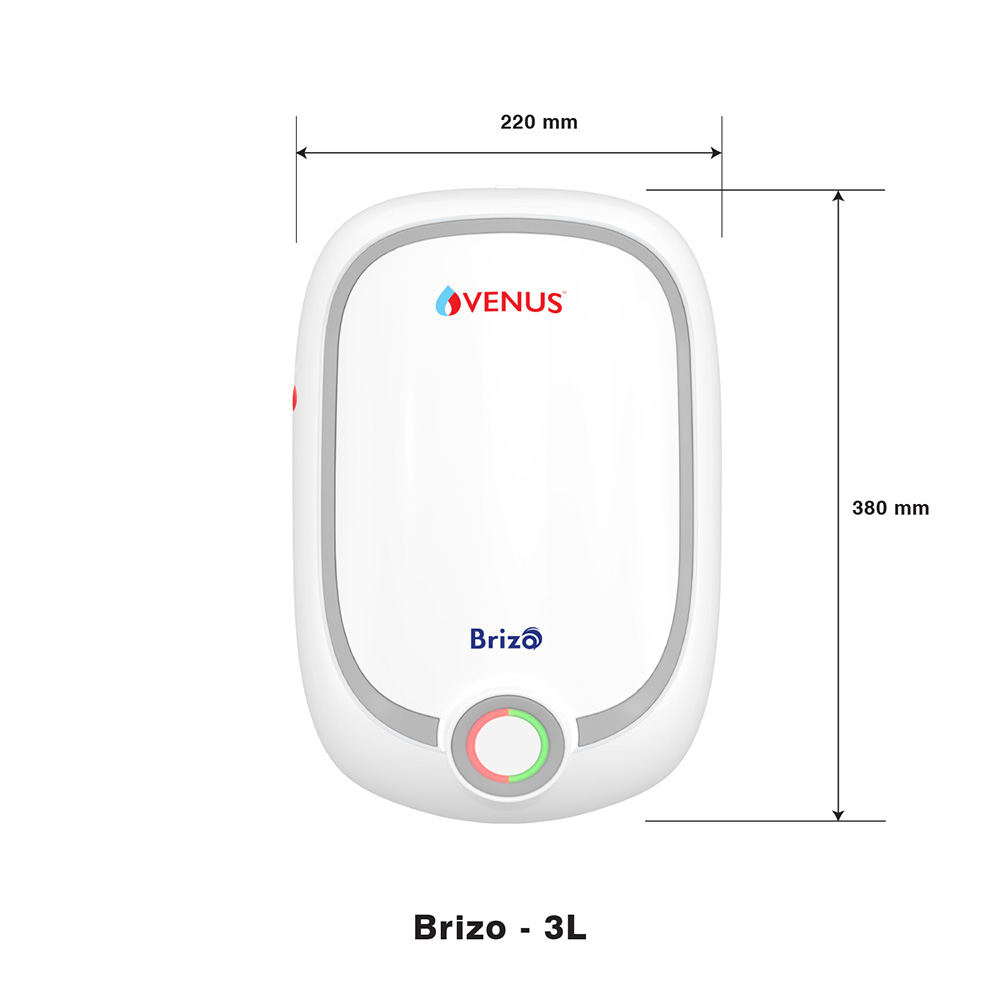

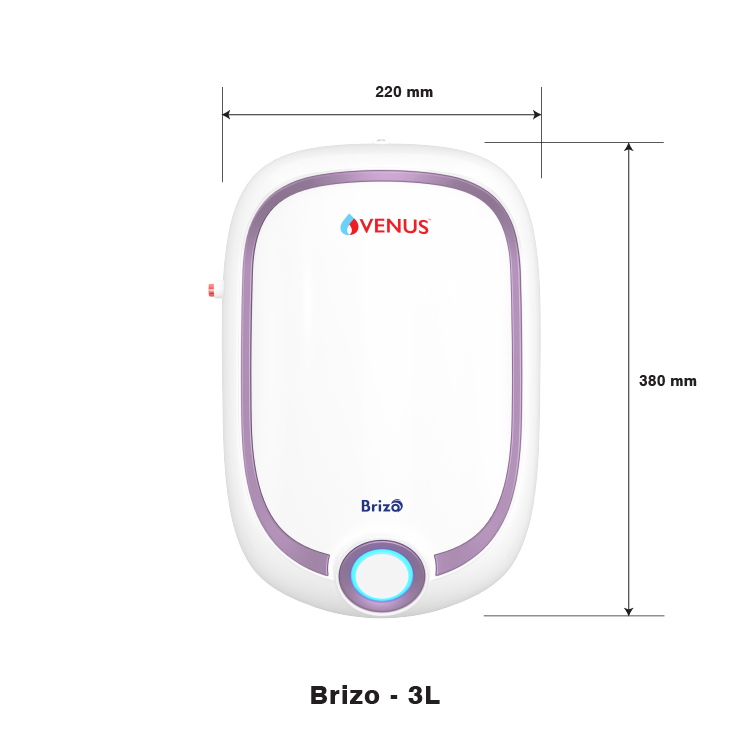

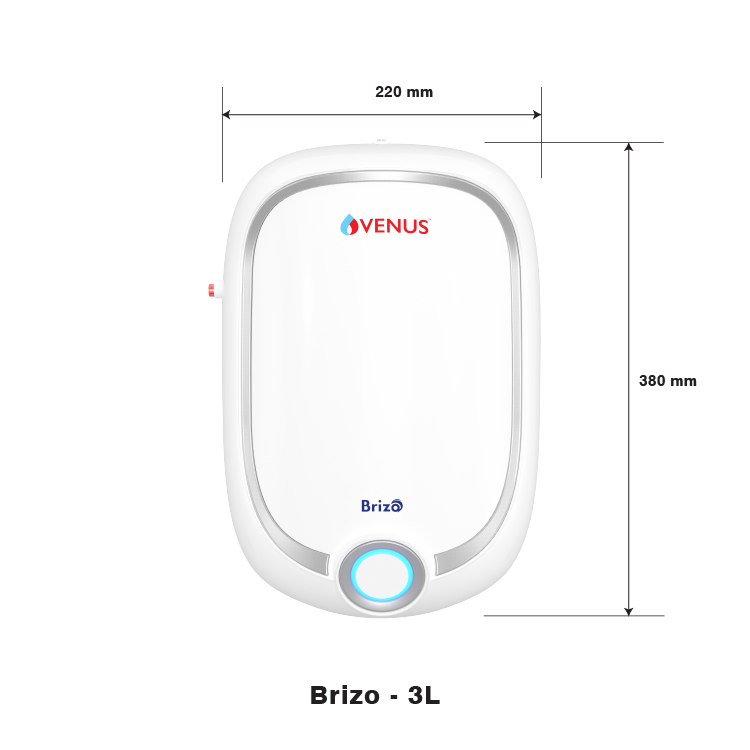

Dimensions (in mm) :
A
B
C

3BB30

3000

3

15C

380

220

226

3BB45

4500

3

21°C

380

220

226

Rated Pressure: 8bar (8kg/cm2 : max, 80m water head)

* Specifications subject to change without prior notice
