Key Features

tankless feather

Feather Touch Operation :

LED digital display of outlet temperature.

tankless abs

ABS Case, Attractive, Semi Transparent:

ABS Case, Attractive, Semi Transparent.

tankless bulit in

Built in Pressure Relief Valve to prevent pressure build up:

Built in Pressure Relief Valve to prevent pressure build up.

tankless fleximount

Flexi Mount:

It can be fixed inside loft or above false ceilings and can be fixed Vertically or Horizontally, according to the space available..

tankless micro

Microprocessor Control::

System adjusts heating power output to maintain the set temperature even when the water flow rate is altered..

tankless digital temp

Digital Temperature Display:

The set and actual temperature are prominently displayed..

tankless wide pressure

Wide Pressure Range:

Enjoy a better shower as it works both in low and high pressure conditions..

nm3

Flow based operation:

Avoids dry heating as it senses the water flow and switches ON the heating element and switches OFF when there is no water flow.

tankless high temp

6 Bars Pressure:

High Working pressure suitable for connection to pressure pumps

tankless abs outer

ABS Plastic Outer Body :

Compact. Corrosion free. Shock proof.

tankless heat exchanger

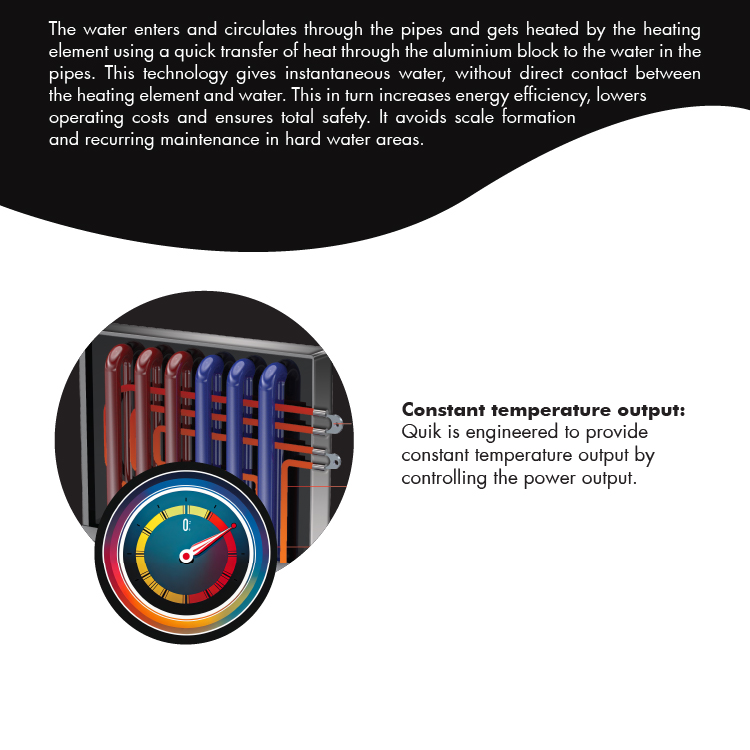

Unique Heat Exchanger Technology :

The heating element and water pipe are molded together for quick transfer of heat from element to the water without contact. This ensures quick heating, long life and safety..

tankless over heat

Over heat Protection:

Super safe as it prevents the heat exchanger from over heating (i.e. more than 90°C).

Specification

Model :

Wattage(W) :

Rated Voltage :

Wiring Size :

WRequired Rating of Circuit Breaker :

Rated pressure :

Safety class:

Temp.Setting range :

Rate of flow:


Temperature Rise @ :
5 L/min
7 L/min
10 L/min

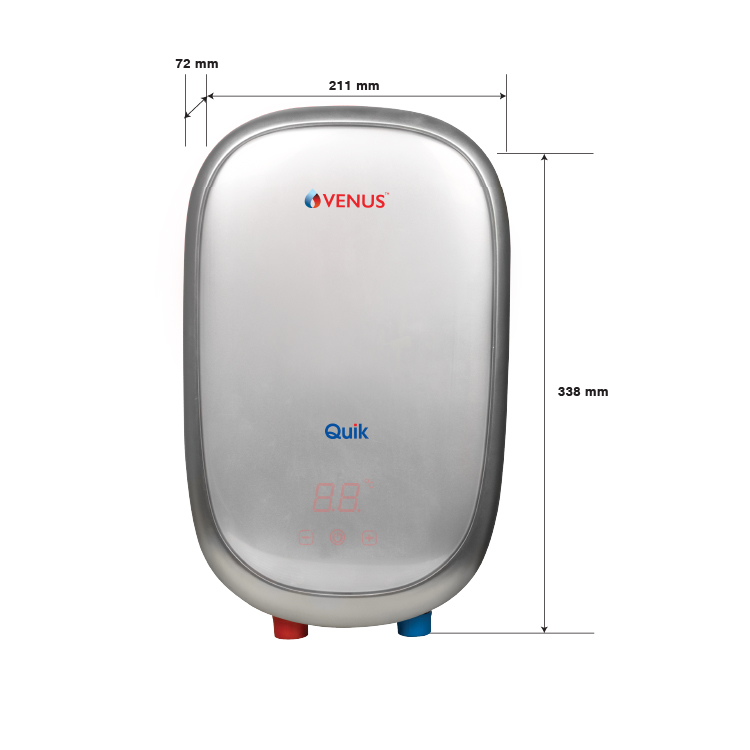

Dimensions (mm):

Q90

9000 W

220 V, 50 Hz AC

3 x 6 mm2

50 amps

0.02 ˜ 0.6Mpa

IP25

30°C - 55°C

1.5 - 10 L/min

26°C

18°C

13°C

A x B x C
310 x 210 x 70

* Specifications subject to change without prior notice

quik 90 line draw
