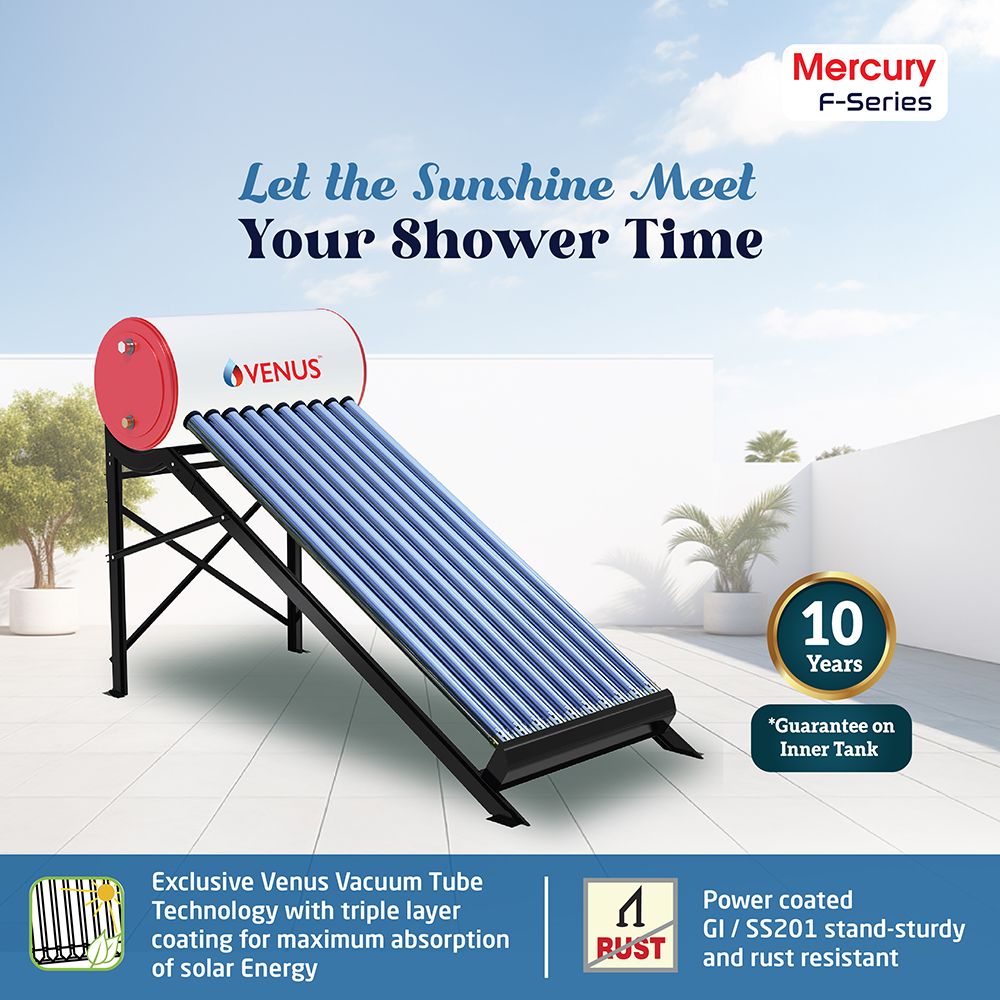

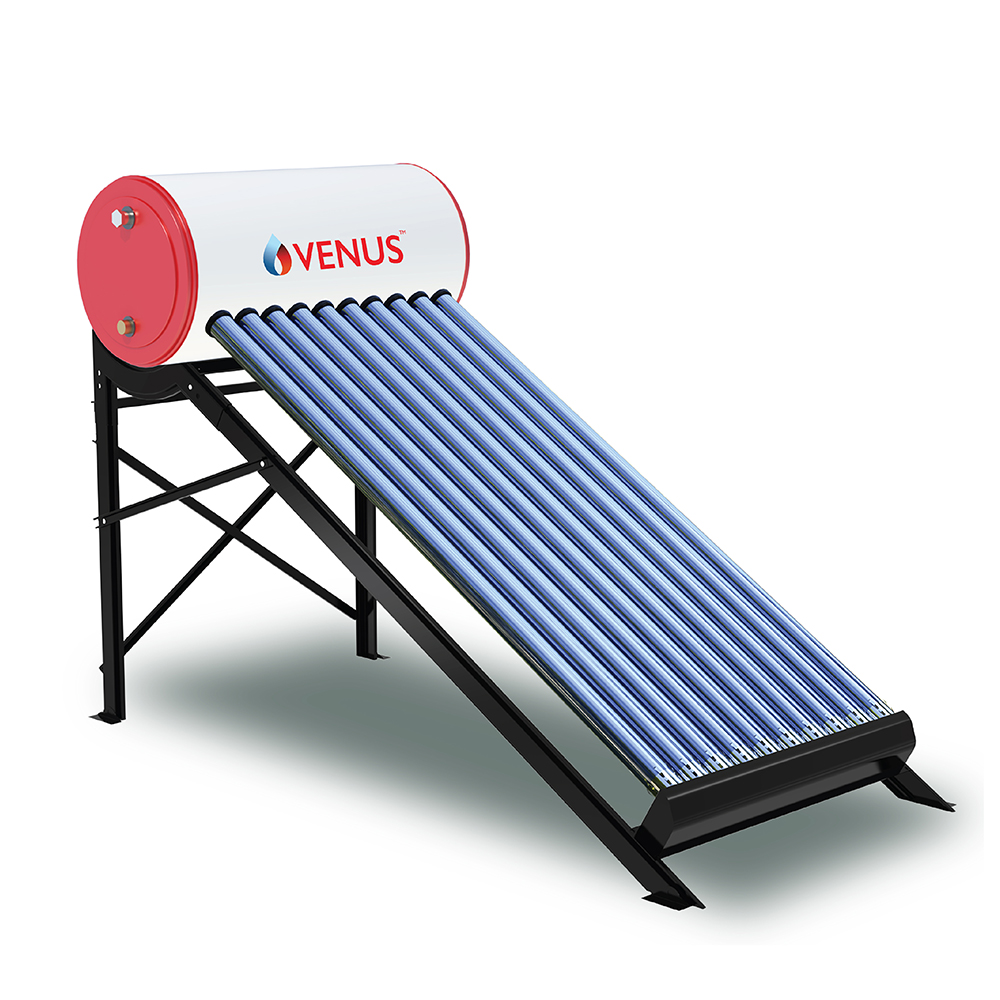

Venus Mercury F-Series Solar Water Heater, Domestic Solar Geyser with 10-Year Inner Tank Warranty

Mercury Domestic F-Series — Efficient Solar Heating for Your Home

Make the most of solar energy with the Venus Mercury Domestic F-Series Solar Water Heater. Designed for households looking to reduce conventional water-heating energy consumption, it combines Vacuum Tube Collector technology with insulated water storage.

Its triple-layer-coated vacuum tubes are designed for effective solar absorption, while the Fusion Blue Line inner-tank coating and PUF insulation support durability and heat retention. A practical choice for homes looking to make solar-powered hot water part of everyday life.

10 Years on Inner Tank5 Years on Product

*Free Site Visit — To check availability in your area, contact us at: 08144666999

Calculate Your Solar Savings

Overview Unique Features Specifications FAQ Video Download Catalogue Reviews

Overview

Discover Venus Domestic Solar Water Heaters

A smarter way to heat water begins with the energy of the sun. Venus domestic solar water heaters are designed to provide hot water for everyday household use while helping reduce electricity consumption for water heating.

The range offers solutions for different home requirements, with technologies designed to capture solar energy, transfer heat to water and retain warmth in an insulated storage tank. Whether you are building a new home or upgrading your existing water heating system, Venus helps you make better use of renewable solar energy.

KEY BENEFITS

Advanced Vacuum Tube Collector technology
Triple-layer coating for solar energy absorption

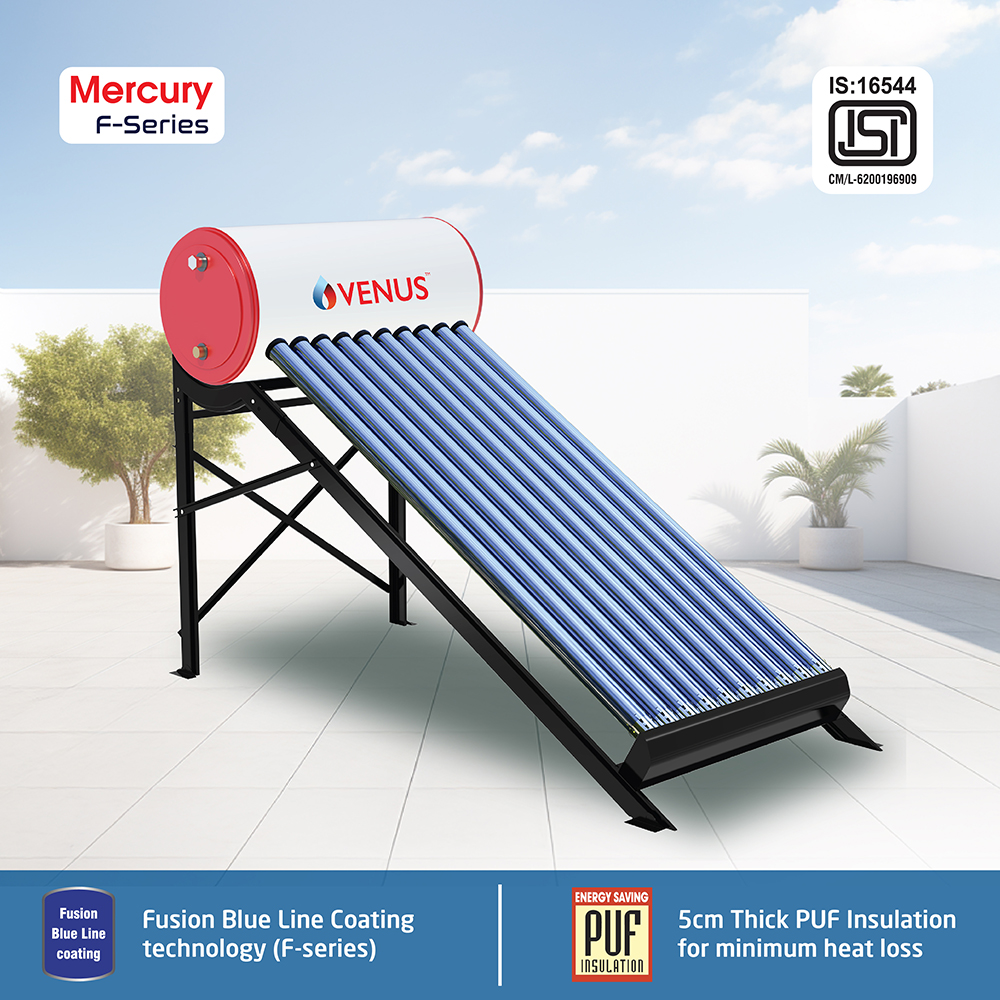

Fusion Blue Line inner-tank coating
5 cm PUF insulation to minimise heat loss
Corrosion-resistant outer cladding
Optional electric backup heating element, subject to model availability
Powder-coated GI/SS201 stand, depending on configuration

Explore our domestic solar water heater models to find the right combination of capacity, technology and features for your family.

How Does Venus VTC Solar Water Heater Technology Work?

Venus Vacuum Tube Collector (VTC) technology harnesses solar radiation to heat water efficiently. The system uses specially coated vacuum tubes to absorb solar energy, while the vacuum between the glass layers helps reduce heat loss.

Absorbs solar energy: The specially coated inner absorber of each vacuum tube captures solar radiation and converts it into heat
Heats water naturally: The absorbed heat warms the water in the collector. Through the thermosiphon effect, hot water rises towards the storage tank while cooler water moves down to be heated, enabling natural circulation without a circulation pump in a conventional thermosiphon system.
Stores hot water: The insulated storage tank helps minimise heat loss and retain hot water for later use, including periods when direct sunlight is unavailable. The result is a solar water heating system that makes productive use of sunlight and can help reduce the electricity required for conventional water heating.

Usage

Besides individual houses, the VTC solar water heater is also ideal for schools, hostels, hotels, dairies, breweries, canteens and industries like automotive, fertilizer, chemical, textiles, pharmaceuticals, etc.

Installation Requirements

Completely Shadow free area on a flat or slopping roof
Close to the bathrooms to avoid long piping & heat losses
A water tank at a atleast of 2.5m (5 ft) above roof level
The solar collector facing south

Save on Water Heating Costs

Harness Solar Energy. Reduce Your Electricity Bills.

Make the most of free solar energy to heat water for your everyday needs. Venus solar water heaters help reduce dependence on conventional electric water heating, lowering energy consumption and helping you save on electricity bills over time. With sunlight as your primary source of energy, you can enjoy a more economical and sustainable way to heat water for your home.

Try the Solar water heater calculator

Available Capacities

100L | 150L | 200L
Can be scaled to meet any requirement of hot water

Unique Features

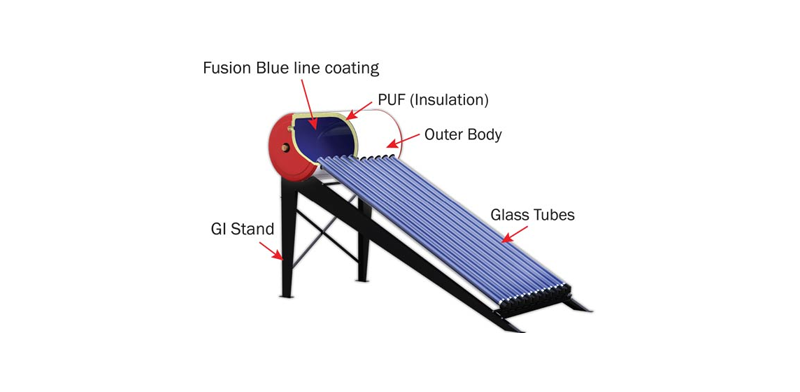

Inner tank

Fusion Blue line coating technology (F-series)

Corrosion proof

Long life corrosion proof Pre coated outer cladding.

Vacuum Tube Technology

Exclusive Venus Vacuum Tube Technology with triple layer coating for maximum absorption of solar Energy.

Rust Resistant

Powder coated GI / SS201 stand - sturdy and rust resistant

Backup electric

Backup electric heating element for cold rainy days (Optional).

PUF insulation

5cm Thick PUF insulation for minimum heat loss

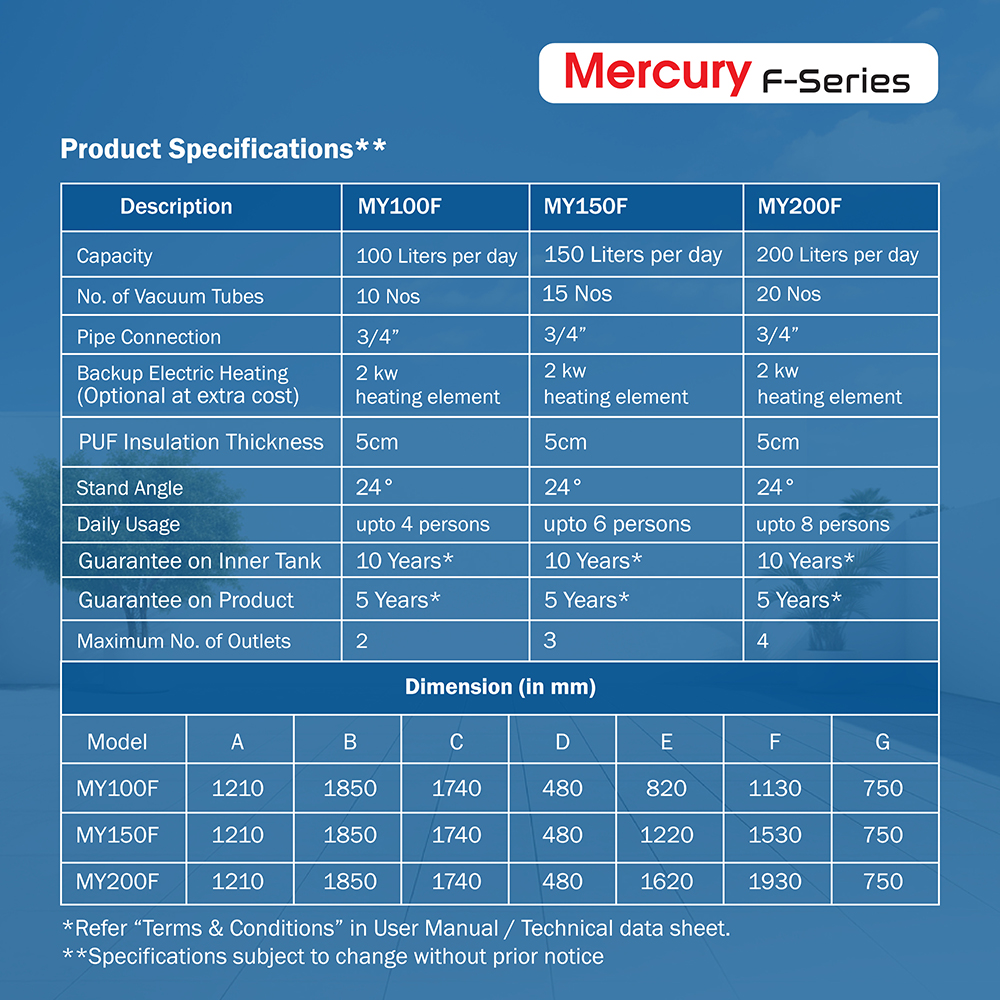

Specifications


Description	MY100F	MY150F	MY200F
Capacity	100 Liters per day	150 Liters per day	200 Liters per day
No. of Vacuum Tubes	10 Nos	15 Nos	20 Nos
Pipe Connection	3/4”	3/4”	3/4”
Backup Electric Heating (optional at extra cost)	2 kW heating element	2 kW heating element	2 kW heating element
PUF Insulation Thickness	5 cm	5 cm	5 cm
Stand Angle	24°	24°	24°
Daily Usage	Up to 4 persons	Up to 6 persons	Up to 8 persons
Guarantee on Inner Tank	10 Years*	10 Years*	10 Years*
Guarantee on Product	5 Years*	5 Years*	5 Years*
Maximum No. of Outlets	2	3	4

* Refer "Terms & Conditions" in User Manual / Technical data sheet.
**Specifications subject to change without prior notice.

FOOT PRINT DRAWING

FAQ

Any Question? Can We Help You.

It uses coated vacuum tubes to absorb solar radiation and heat water. Natural thermosiphon circulation transfers the heated water to the storage tank, where insulation helps retain warmth.

The vacuum between the glass layers reduces heat loss from the tubes, while the selective coating helps absorb solar energy. This supports efficient solar water heating

An optional electric backup heating element is listed for the range, subject to the specific model and configuration. Confirm availability when selecting your product.

The current product information lists 10 years on the inner tank and 5 years on the product, subject to warranty terms.

A suitable shadow-free roof area, adequate structural support, appropriate water supply arrangements and correct positioning of the collector are important. Venus installation personnel should assess the site before installation.
