Benefits

Energy savings from tapping into the renewable solar energy for your hot water requirements.

Accelerated depreciation upto 80% available.

Mercury Commercial Models are available from 300 litres up to 3000 litres and can be scaled up to meet Customer requirements.

Hot water recirculation with an automated circulation pump which ensures hot water is available in seconds when the tap is opened (optional).

Pressurized models (Halo Commercial) with 5 bar pressure rating are also available.

Key Features

solar-nemo-1

Epoxy coated Inner tank:

Superior corrosion resistant Epoxy coated Inner tank.

solar-nemo-7

Powder coated Outer body:

Powder coated outer body:Long life corrosion proof Pre coated outer cladding, (Upto 1500 LPD)

solar-nemo-3

Vacuum Tube Technology

Vacuum Tube Technology with triple layer coating for maximum absorption of solar radiation.

solar-nemo-6

Powder coated MS stand

Powder coated MS stand - sturdy and rust resistant

solar-nemo-4

Backup electric

Backup electric heating element for cold rainy days(Optional)

solar-nemo-8

Nitrile-rubber

Nitrile-rubber is an advanced technology insulation. Prevents heat loss & ensures higher energy efficiency (2000 LPD and above)

solar-nemo-5

PUF insulation

5cm Thick PUF insulation for minimum heat loss (Upto 1500 LPD)

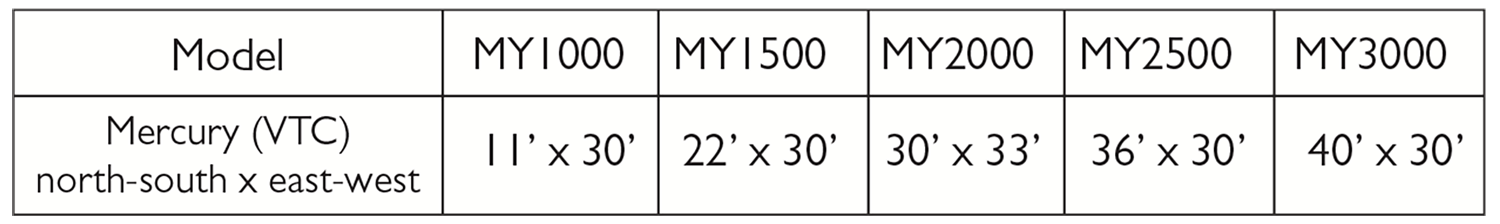

Specification

Product Area(In mm)

Model

Mercury (VTC)north-south x east-west

MY300

7'x15'

MY500

8’x15’

MY1000

11'x30'

MY1500

22'x30'

MY2000

30'x33'

MY2500

36’x30’

MY3000

40'x30'

Product Specifications

Description 300LPD 500LPD 1000LPD 1500LPD 2000LPD 2500PD 3000LPD
Capacity 300L per day 500L per day 1000L per day 1500L per day 2000L per day 2500L per day 3000L per day
No. of Vacuum Tubes 28 28 100 150 200 250 300
Tube Length 1800 mm 2100mm 1800 mm 1800 mm 1800 mm 1800 mm 1800 mm
No. of Manifold NA NA 2 3 4 5 6
Safety Devices (Optional) Thermostat
Pipe Connection) 1” Tank main inlet & Outlet - 1 1/2'" & Solar Circulation lines are 1"
PUF Insulation Thickness 50 mm Injected PUF 25 mm Nitrile Rubber
Stand Angle 35° - 38°
Daily Usage(persons) 12 20 40 60 80 100 120
Maximum No .of Outlets 6 8 14 21 28 35 42
Foot Print Area 10 m2 12 m2 31 m2 61 m2 92 m2 101 m2 112 m2
Guarantee 5 Years* 1 Year*

* Refer “Terms & Conditions” in User Manual.
