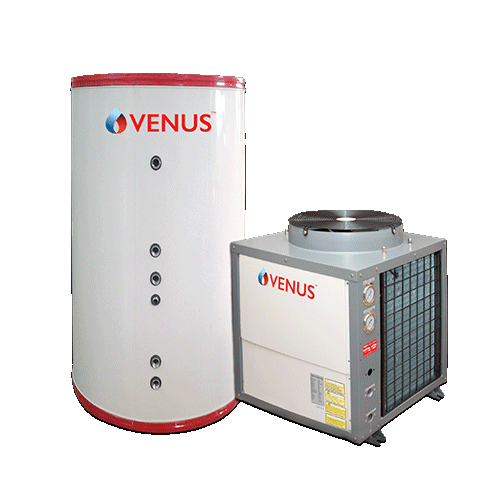

Heat Pump Commercial

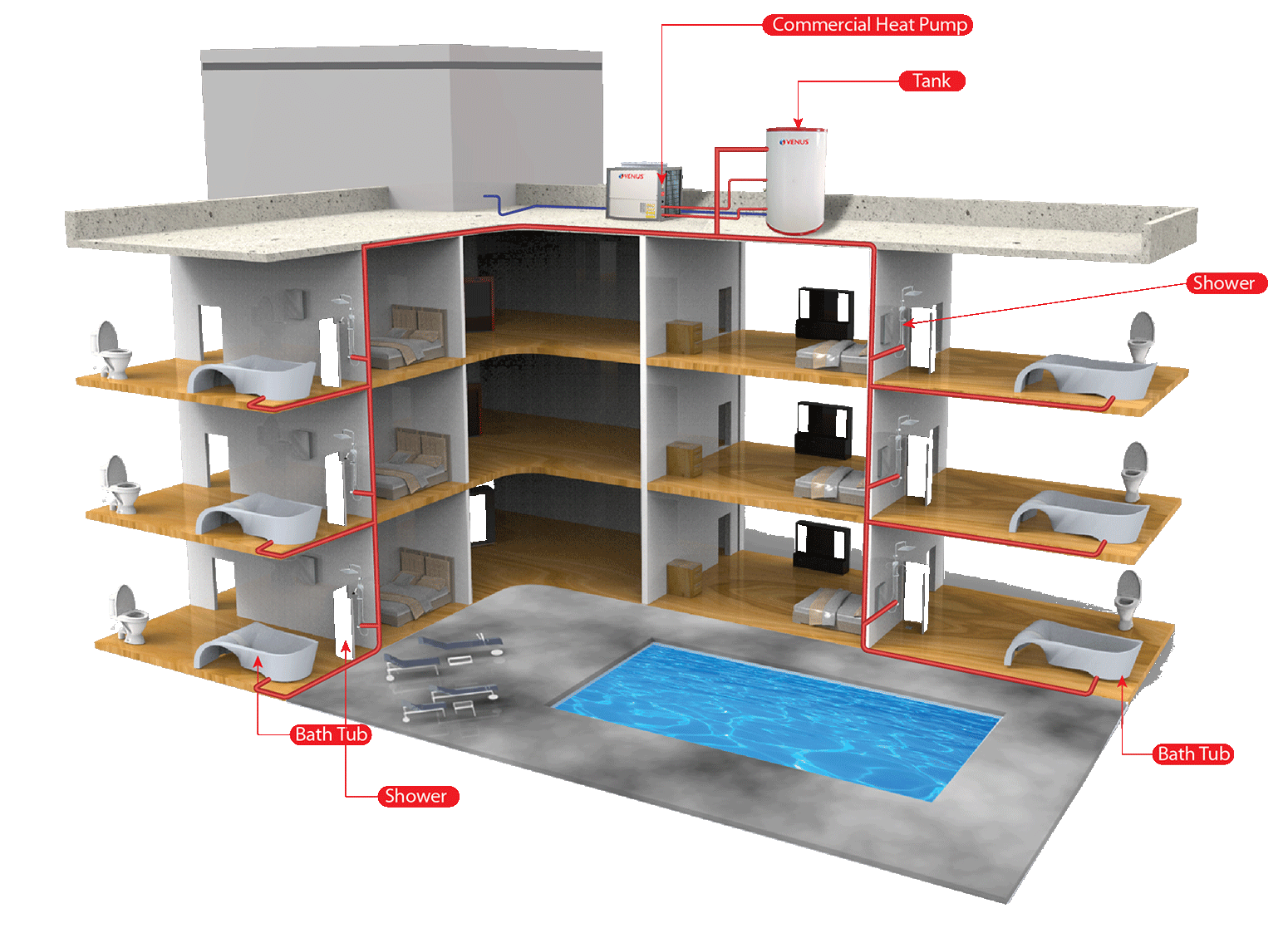

Uses heat from the air to heat water and saves energy as much as 60-80%, when compared to oil fired boilers or electric water heaters. It is ideal for commercial applications like in hotels, hospitals, spas, hostels etc. where hot water is needed in large volumes. This range saves on operating costs by tapping into the heat in the air in a safe and affordable way. You can satisfy your customers while saving on your energy bills.

commercial inner banner commercial inner banner1

APPLICATIONS

hp-applications-hotelsimages

Heat pump water heaters are highly energy efficient as most of the energy for heating comes from the external environment, and only a fraction comes from electricity. Thus for 1kW electricity consumed the heat transferred will be 4kW. The amount of electrical energy needed to heat water is greatly reduced compared to a conventional electric water heater in which, for 1kW electricity consumed the heat transferred is only 1kW. Thus in heat pump water heaters the coefficient of performance (ratio of output power to input power) can be as high as 4.

commercial inner banner2

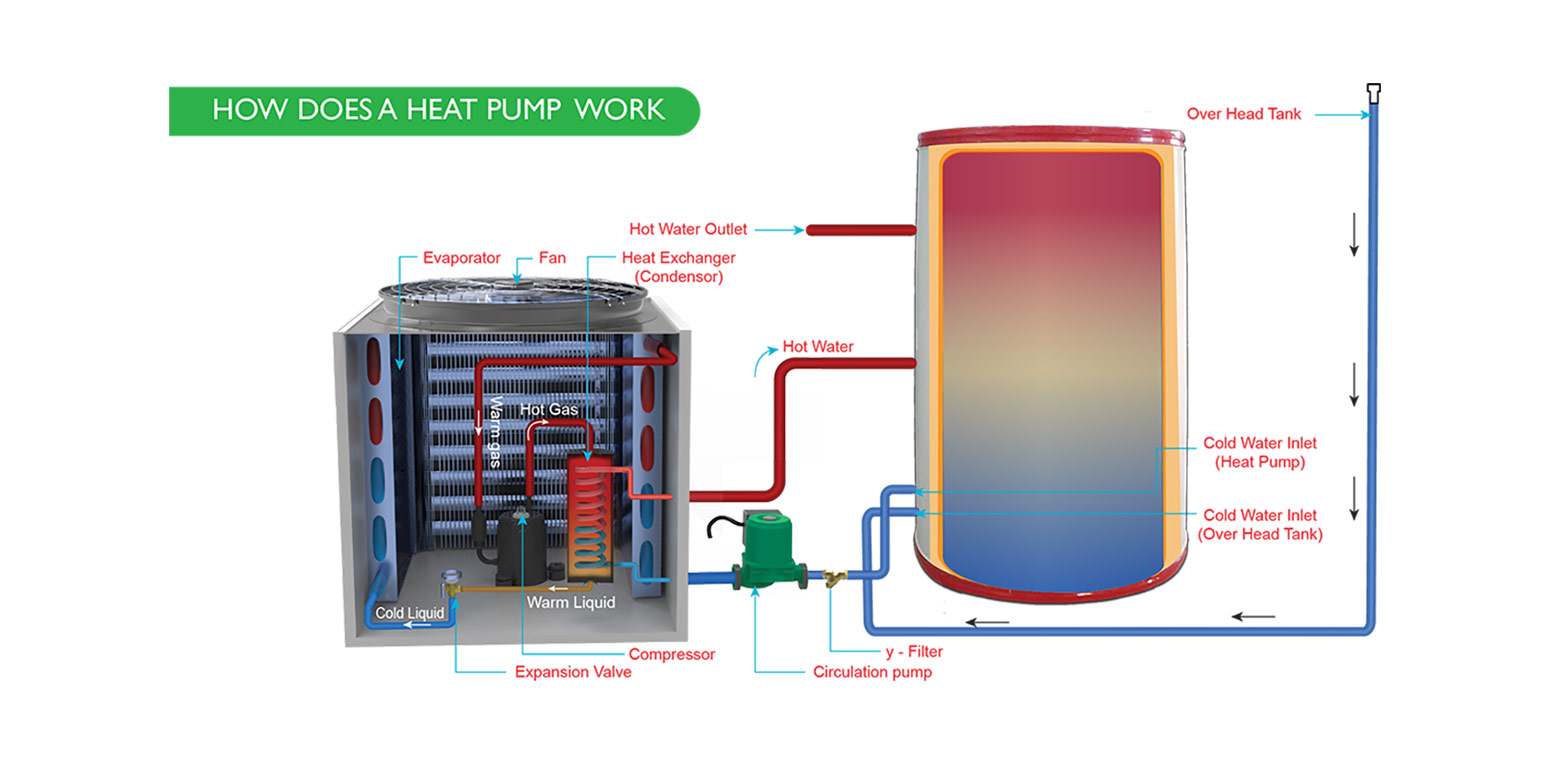

HOW DOES A HEAT PUMP WORK

  • Major components of a heat pump water heater include a compressor, a refrigerant, two heat exchangers (a condenser and an evaporator) and an expansion valve.
  • The operation begins with air being forced through an evaporator which contains a liquid refrigerant, with the help of a fan.
  • This refrigerant evaporates to a gas and extracts heat from the ambient air.
  • The warm gaseous refrigerant then passes through the compressor, which increases its pressure and it becomes a hot gas.
  • This hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.
  • The refrigerant cools down in the condenser and becomes a warm liquid.
  • It then passes through an expansion valve and becomes a cool liquid and enters the evaporator again.
  • The cycle is then repeated in this manner.
  • Thus heat absorbed from the air is transferred to the water and the heating continues till the desired temperature is reached.

KEY FEATURES

Eco-friendly technology - using eco-friendly refrigerant.

Intelligent digital controller for precise control and easy operation.

Wide temperature range operation, from -10ºC to 43ºC. Can work at night as well as on cloudy or rainy days just like on sunny days

Can be scaled to meet any requirement of hot water - 500 L & above.

Rugged and reliable Scroll compressor with high efficiency heat exchanger - reliable and durable.

High energy efficiency - COP of 4.2.

Easy to install. Just need to connect the pipelines and electrical connections.

Occupies very little space and can be installed on the terrace or roof.

Heat input as low as 2.86 kW; delivers heat output up to 12 kW (for VCHX10i model).

Long life and corrosion-resistant cabinet to withstand severe climates.

commercial inner banner3

Features

eco friendly

Eco-friendly Refrigerant:

Eco friendly technology as an Eco friendly refrigerant is used.

hp of hot water

Higher requirements
of hot water:

Can be scaled to meet any requirement of hot water - 500 L & above.


Low operating cost - more savings

Low operating cost - more savings:

Heat input as low as 2.86 kW; delivers heat output up to 12 kW (for VCHX10i model).- More Savings.

Condensor

Condensor:


The hot gas enters a heat exchanger (condenser) and transfers its heat to the water inside a storage tank.

Evaporator

Evaporator:


Wide temperature range operation, from -10ºC to 43ºC. Can work at night as well as on cloudy or rainy days just like on sunny days.

Intelligent-Electronic-controller

Intelligent Electronic
controller:

Intelligent digital controller for precise control and easy operation.

hp-expansion-valve

Expansion valve:


The expansion valve is an important component in the Heat pump water heater operation.

hp-compressor

Compressor - heart of the heat pump:

Rugged and reliable Scroll compressor with high efficiency heat exchanger - reliable and durable.

hp-circulation-pump

Circulation Pump:

The circulation pump circulates hot water from the storage tank to the heat pump to enable heat transfer.

hp-high-enegry

High Energy Efficiency - cop of 4.2

Utilizes as low as 0.83 / 1.19 / 1.79 kW input; delivers heat output up to 3.5 / 5.0 / 7.5 kW COP of 4.2

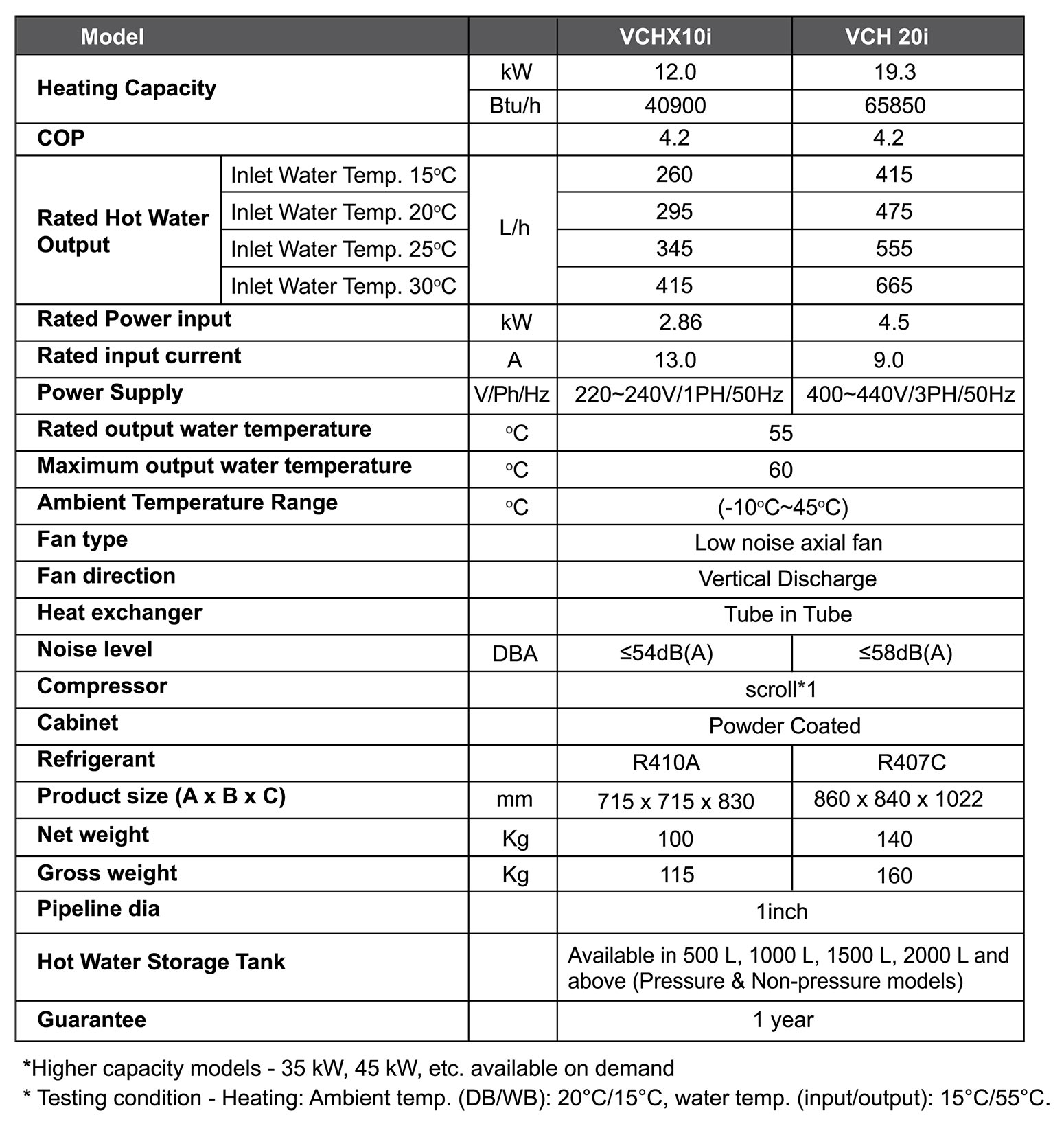

Specification

Model :

Heating Capacity:

Heating Capacity:

COP

Rated Hot Water Output Inlet Water Temp.15°C:

Rated Hot Water Output Inlet Water Temp.20°C:

Rated Hot Water Output Inlet Water Temp.25°C:

Rated Hot Water Output Inlet Water Temp.30°C:

Rated Power Input:

Rated Input Current :

Power Supply:

Rated Output Water Temperature :

Maximum Output Water Temperature:

Ambient Temperature Range:

Fan Type:

Fan Direction:

Heat exchanger:

Noice Level:

Compressor:

Cabinet:

Refrigerent:

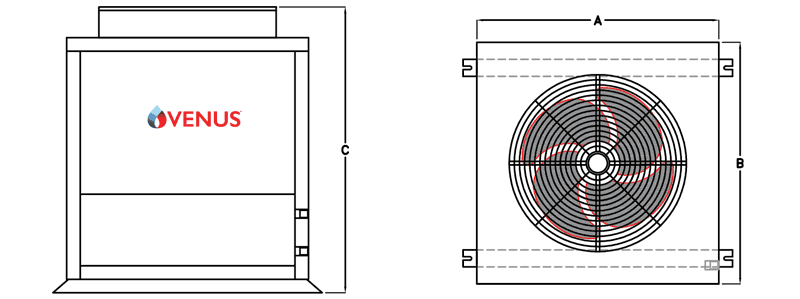

Product size (A x B x C):

Net weight:

Gross weight:

Pipeline dia:

Hot Water Storage Tank:

Guarantee:

-

KW

BTU/h

-

L/h

KW

A

V/Ph/Hz

°C

°C

°C

-

-

-

DBA

-

-

-

mm

Kg

Kg

-

-

-

VCHX10i

12.0

40900

4.2

260

295

345

415

2.8

13.0

220-240V/1PH/50Hz

55

60

(-10°C 43°C)

Low Noice Axial Fan

Vertical Discharge

Tube in Tube

<54dB(A)

Scroll°1

Powder Coated

R410A

715 x 715 x 830

90

100

1inch

Available in 500 L, 1000 L, 1500 L, 2000 L and above (Pressure & Non-pressure models)

1 year

VCH 20i

19.3

65850

4.2

415

475

555

665

4.5

7.41

400 440V/3PH/5Hz

55

60

(-10°C 43°C)

Low Noice Axial Fan

Vertical Discharge

Tube in Tube

<54dB(A)

Scroll°1

Powder Coated

R407C

810 x 810 x 1060

140

160

1inch

Available in 500 L, 1000 L, 1500 L, 2000 L and above (Pressure & Non-pressure models)

1 year

*Higher capacity models - 35 kW, 45 kW, etc. available on demand
* Testing condition - Heating: Ambient temp. (DB/WB): 20°C/15°C, water temp. (input/output): 15°C/55°C.
* Specifications subject to change without prior notice
